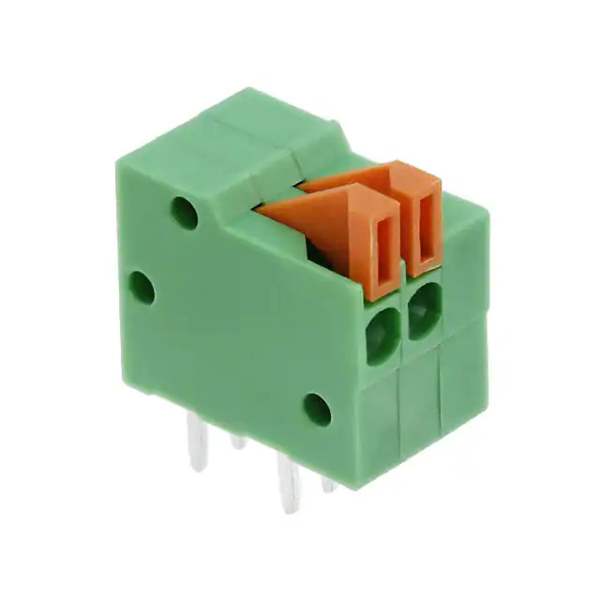

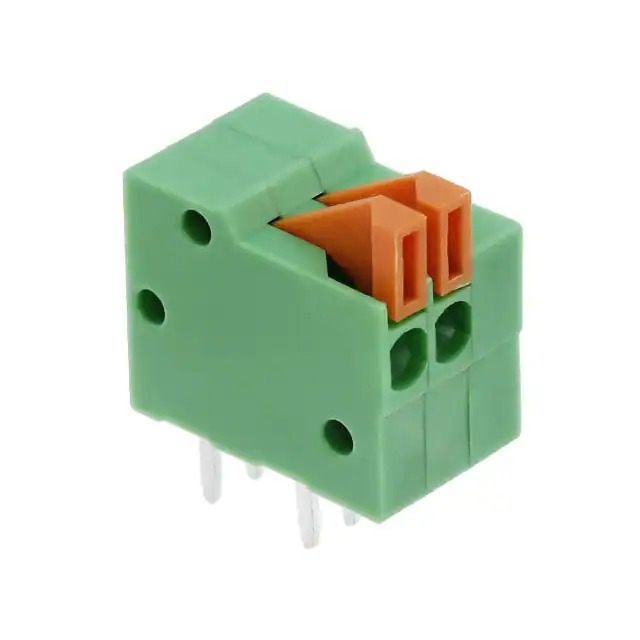

1-2834016-2 TE Connectivity
Same model may have multiple batches, images only for reference.

1-2834016-2

Part No 1-2834016-2
Manufacturer TE Connectivity
Catalog Terminal Blocks
Description TERM BLK 2P SIDE ENT 2.54MM PCB / 2 Position Wire to Board Terminal Block Horizontal with Board 0.100" (2.54mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr TE Connectivity AMP Connectors
Series -
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 2
Pitch 0.100" (2.54mm)
Mating Orientation Horizontal with Board
Current 6 A
Voltage 150 V
Wire Gauge 20-26 AWG
Mounting Type Through Hole
Wire Termination Screwless - Leg Spring, Push-In Spring
Features -
Color Green
Temperature Range - Operating -40°C ~ 105°C
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating Steel, Stainless
Screw Material - Plating -
Torque - Screw -
Screw Thread -
Base Product Number 2834016
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1363497-1-2834016-2
Ultra Librarian 3D Model Ultra Librarian 1-2834016-2 CAD Model

Description

The 1363497-1-2834016-2 is a wire-to-board terminal block connector from TE Connectivity AMP Connectors.

  • Temperature Range: -40°C to 105°C
  • Status: Active
  • Package: Bulk
  • Mounting Type: Through Hole
  • Pitch: 0.100" (2.54mm)
  • Contact Material: Copper Alloy
  • Contact Plating: Tin
  • Housing Material: Polyamide (PA66)
