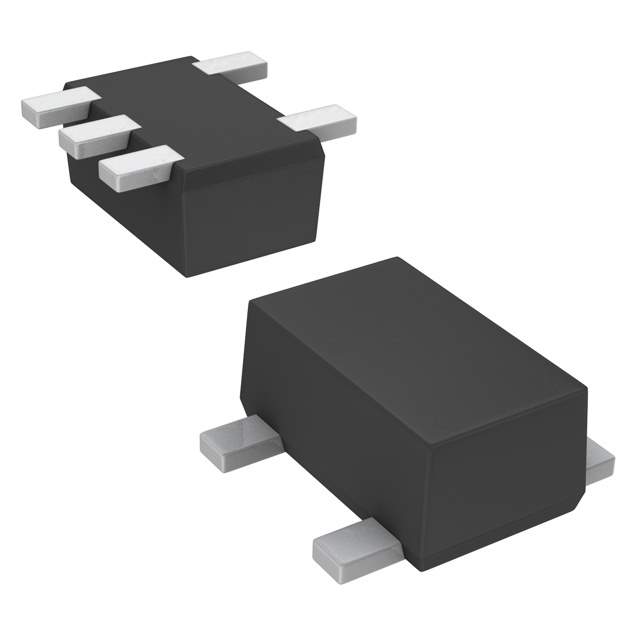

DMG563020R Real Image
Same model may have multiple batches, images only for reference.

DMG563020R

Part No DMG563020R
Manufacturer Panasonic
Catalog Transistors (BJT) - Arrays, Pre - Biased
Description TRANS PREBIAS NPN/PNP SMINI5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel
Transistor Type 1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Maximum) 100mA
Voltage - Collector Emitter Breakdown (Maximum) 50V
Resistor - Base (R1) 22kOhms
Resistor - Emitter Base (R2) 22kOhms
DC Current Gain (hFE) (Minimum) at Ic, Vce 60 at 5mA, 10V
Vce Saturation (Maximum) at Ib, Ic 250mV at 500μA, 10mA
Current - Collector Cutoff (Maximum) 500nA
Maximum Power 150mW
Mounting Style SMD
Manufacturer Package 6-SMD (5 Leads), Flat Lead
Supplier Device Package SMini5-F3-B
Family Part Number DMG56302
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 752922-DMG563020R
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DMG563020R CAD Model

Description

The DMG563020R is a dual pre-biased NPN and PNP transistor manufactured by Panasonic Electronic Components.

  • Manufacturer: Panasonic Electronic Components
  • Supply and Demand Status: Limited
  • Vce Saturation: 250mV @ 500μA, 10mA
  • DC Current Gain (hFE): 60 @ 5mA, 10V
  • Maximum Power: 150mW
  • Resistors: 22kOhms (Base and Emitter Base)
