Same model may have multiple batches, images only for reference.

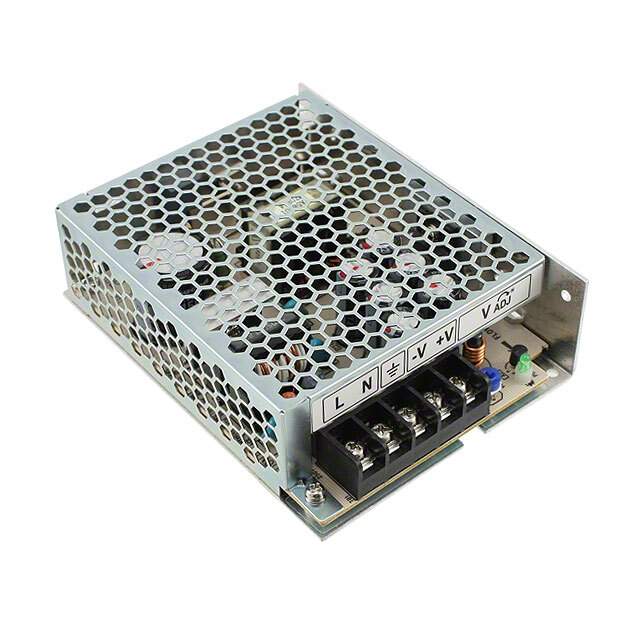

LS75-24 Real Image
Same model may have multiple batches, images only for reference.

LS75-24

Part No LS75-24
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 75W  /  Enclosed AC DC Converters 1 Output 24V 88 ~ 264 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series LS (75W)
Package Bulk
Type Enclosed
Number of Outputs 1
Voltage - Input 88 ~ 264 VAC
Voltage - Output 1 24V
Current - Output 1 3.2 A
Power (Watts) 75W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 86%
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Features Adjustable Output, DC Input Capable, Universal Input
Mounting Type Chassis Mount
Dimension 5.10" L x 3.80" W x 1.50" H (129.5mm x 96.5mm x 38.1mm)
Approval Agency CE
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.6018
Other Names Q4398930,285-1827,LS7524
Standard Package 1
Win Source Part Number 1156112-LS75-24
Ultra Librarian 3D Model Ultra Librarian LS75-24 CAD Model

Description

The TDK-Lambda Americas Inc LS (75W) series power supply is an enclosed type power supply with a power rating of 75W.

  • Series: LS (75W)
  • Type: enclosed
  • Power Rating: 75W
  • Adjustable Output: Yes
  • DC Input Capable: Yes
  • Input: universal
  • Application: ITE (Commercial)
  • Input Voltage Range: 88 ~ 264 VAC
  • Isolation Voltage: 3 kV
  • Output: single
  • Voltage: 24V
  • Efficiency: 86%
  • Current Output: 3.2A
  • Mounting: chassis mountable
  • Temperature Range: -25°C to 70°C (With Derating)
  • Dimension: 5.10" L x 3.80" W x 1.50" H (129.5mm x 96.5mm x 38.1mm)
  • Alternative Parts: LS-75-24 and LS75-24
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.40.6018 compliant
  • Approval: CE
