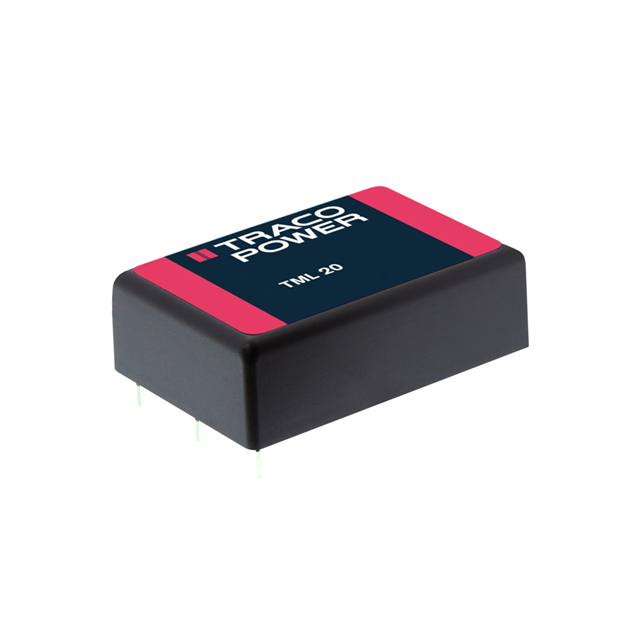

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Mfr Traco Power
Series TML (20W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC, 100 ~ 375 VDC
Voltage - Output 1 12V
Current - Output (Max) 1.67A
Power (Watts) 20 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Efficiency 84%
Mounting Type Through Hole
Package / Case 8-DIP Module, 5 Leads
Dimension 2.74" L x 1.87" W x 0.85" H (69.5mm x 47.5mm x 21.7mm)
Approval Agency CB, CE, cURus
Base Product Number TML 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names TML 20112-ND,TML20112
Standard Package 10
Win Source Part Number 1185095-TML 20112
Ultra Librarian 3D Model Ultra Librarian TML 20112 CAD Model

Description

The TML20112 is a power supply board mount AC DC converter manufactured by Traco Power.

  • Type: Enclosed
  • Series: TML (20W)
  • Power Rating: 20W
  • Input: Universal Input
  • Package: Box
  • Application: ITE (Commercial)
  • Standard Package: 10
  • Voltage Input: 90 ~ 264 VAC, 100 ~ 375 VDC
  • Current Output: 1.67A
  • Voltage Output: 12V
  • Efficiency: 84%
  • Mounting Type: Through-Hole
  • Package/Case: 8-DIP Module, 5 Leads
  • Temperature Range: -25°C ~ 70°C (With Derating)
  • Win Source Part Number: 1185095-TML 20112
