Same model may have multiple batches, images only for reference.

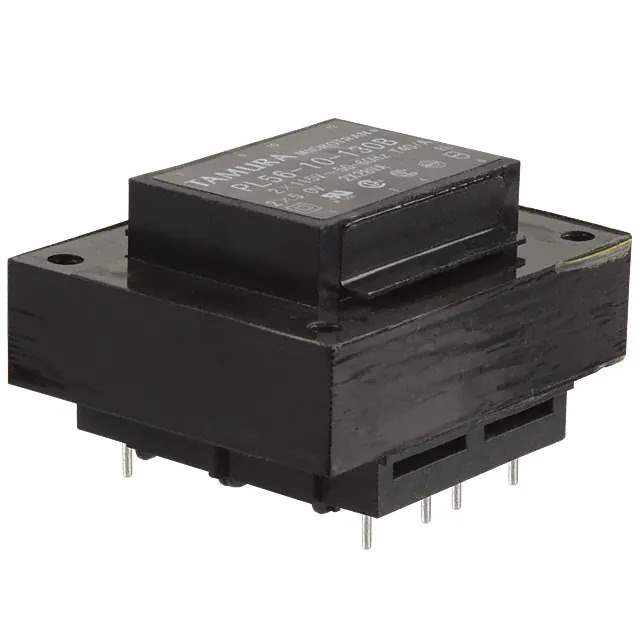

PL56-16-130B Real Image
Same model may have multiple batches, images only for reference.

PL56-16-130B

Part No PL56-16-130B
Manufacturer Tamura
Catalog Power Transformers
Description PWR XFMR LAMINATED 56VA TH
Datasheet
PL56-16-130B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Power Transformers
Mfr Tamura
Series PL56-xx-130B
Package Bulk
Product Status Active
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 8V, Series 16V
Current - Output (Max) Parallel 7A, Series 3.5A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 56VA
Mounting Type Through Hole
Termination Style PC Pin
Size / Dimension 76.20mm L x 64.00mm W
Height - Seated (Max) 48.50mm
Voltage - Isolation 3500Vrms
Standard Package 10 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 886192-PL56-16-130B
Ultra Librarian 3D Model Ultra Librarian PL56-16-130B CAD Model

Description

The Tamura Power Transformer 886192-PL56-16-130B is a high-quality electronic component designed for power applications.

  • Series: PL56-xx-130B
  • Core Type: Laminated
  • Maximum Power Rating: 56VA
  • Voltage Isolation: 3500Vrms
  • Primary Voltages: 115V and 230V
  • Windings: Dual Primary and Secondary
  • Mounting: Through-hole
  • Package: Bulk
