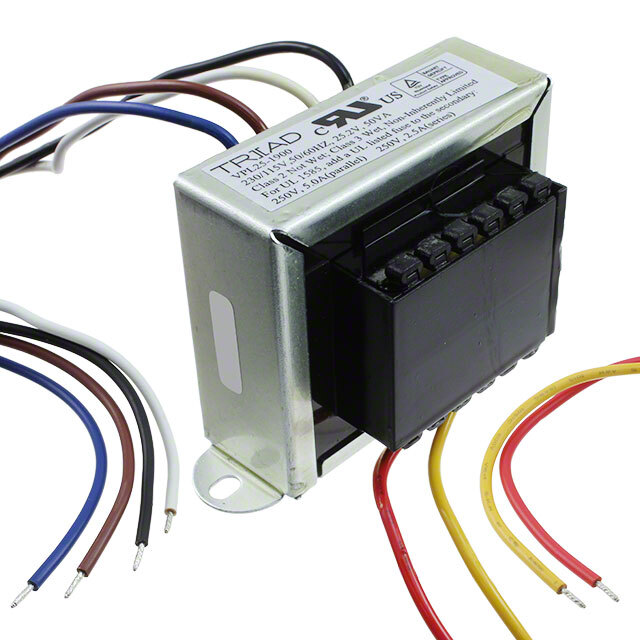

VPL25-1900 Triad Magnetics
Same model may have multiple batches, images only for reference.

VPL25-1900

Part No VPL25-1900
Manufacturer Triad Magnetics
Catalog Power Transformers
Description XFRMR PWR 25.2V 1.984A CHASSIS / Power Transformer 3500VAC 25VA 8 Terminal Wire Lead Flange Mount
Datasheet
VPL25-1900 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Triad Magnetics
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) 25.2V
Current - Output (Maximum) 1.984A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 50.0 VA
Mounting Chassis Mount
Termination Style Wire Leads
Dimension 57.15mm L x 101.6mm W
Height - Seated (Maximum) 65.09mm
Voltage - Isolation 3500Vrms
Weight 2.3 lbs (1kg)
Win Source Part Number 792396-VPL25-1900
Popularity Medium
Supply and Demand Status Limited
Family Name VPL
Introduction Date December 18, 2006
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian VPL25-1900 CAD Model

Description

The VPL25-1900 laminated core transformer is manufactured by Triad Magnetics.

  • Maximum Power: 50.0 VA
  • Weight: 2.3 lbs (1kg)
  • Voltage Isolation: 3500Vrms
  • Primary Voltage: 115V or 230V
  • Windings: Dual Primary and Secondary
  • Current Output: 1.984A
  • Series: VPL
  • Size: 57.15mm L x 101.6mm W
  • Mounting: Chassis Mount
  • Estimated EOL Date: 2028
