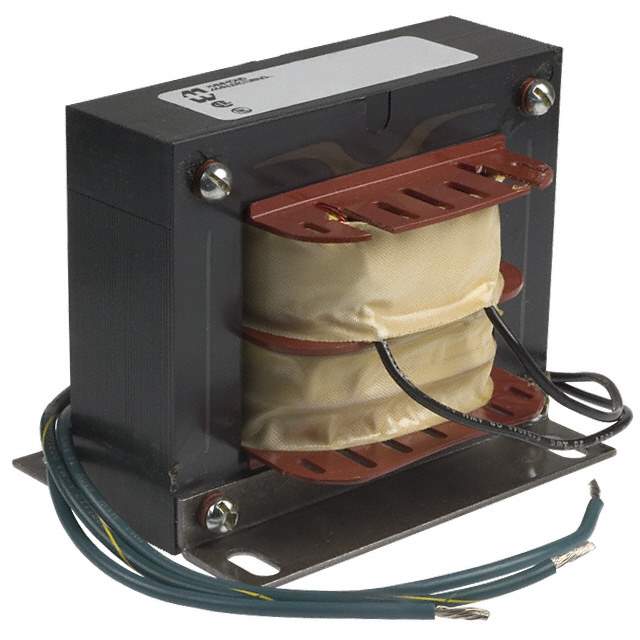

165V10 Real Image
Same model may have multiple batches, images only for reference.

165V10

Part No 165V10
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description XFRMR LAMINATED 200VA CHAS MOUNT
Datasheet
165V10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Hammond Manufacturing
Status Active
Type Laminated Core
Voltage - Primary 115V
Voltage - Secondary (Full Load) 10V
Current - Output (Max) 20A
Primary Winding(s) Single
Secondary Winding(s) Single
Center Tap Yes
Maximum Power Dissipation 200 VA
Mounting Chassis Mount
Termination Style Wire Leads
Height - Seated (Max) 79.50mm
Isolation Voltage 2000Vrms
Weight 6 lbs (2.7kg)
Win Source Part Number 1006698-165V10
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 165V10 CAD Model

Description

The Hammond Manufacturing 451509 is a laminated core transformer with wire leads for termination.

  • Termination: wire leads
  • Height: 79.50mm
  • Mounting: chassis mountable
  • Weight: 6 lbs (2.7kg)
  • Isolation Voltage: 2000Vrms
  • Primary Voltage: 115V
  • Maximum Output Current: 20A
  • Secondary Voltage @ Full Load: 10V
  • Windings: single primary and secondary
  • Center Tap: yes
  • Maximum Power Dissipation: 200 VA
