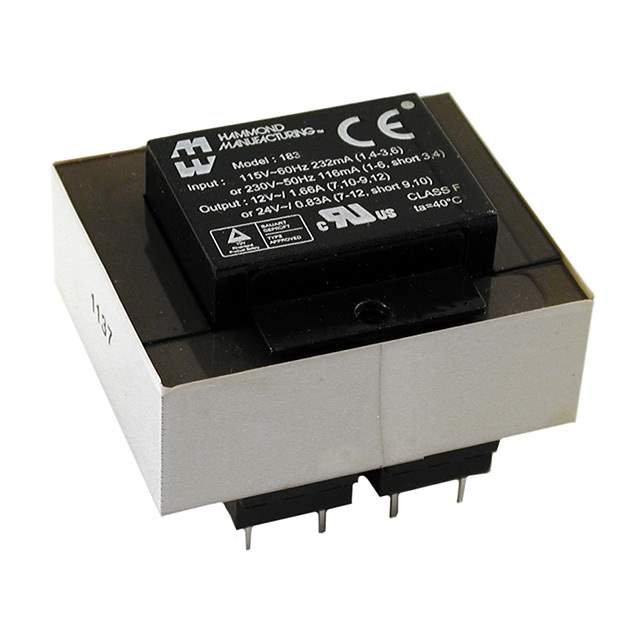

183H20 Real Image
Same model may have multiple batches, images only for reference.

183H20

Part No 183H20
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR LAMINATED 20VA TH
Datasheet
183H20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Hammond Manufacturing
Series 183
Package Bulk
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 10V, Series 20V
Current - Output (Max) Parallel 2A, Series 1A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 20VA
Mounting Type Through Hole
Termination Style PC Pin
Size / Dimension 57.15mm L x 47.63mm W
Height - Seated (Max) 41.28mm
Voltage - Isolation 4000Vrms
Weight 0.9 lb (408.23 g)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Standard Package 1 pcs
Win Source Part Number 1382245-183H20
Ultra Librarian 3D Model Ultra Librarian 183H20 CAD Model

Description

The 183H20 is a laminated core power transformer from the 183 series.

  • Power Rating: 20VA
  • Voltage Isolation: 4000Vrms
  • Primary Voltage: 115V/230V
  • Secondary Current (Parallel): 2A (Max)
  • Secondary Current (Series): 1A (Max)
  • Mounting Type: Through Hole
  • Termination: PC Pin
  • Manufacturer: Hammond Manufacturing
