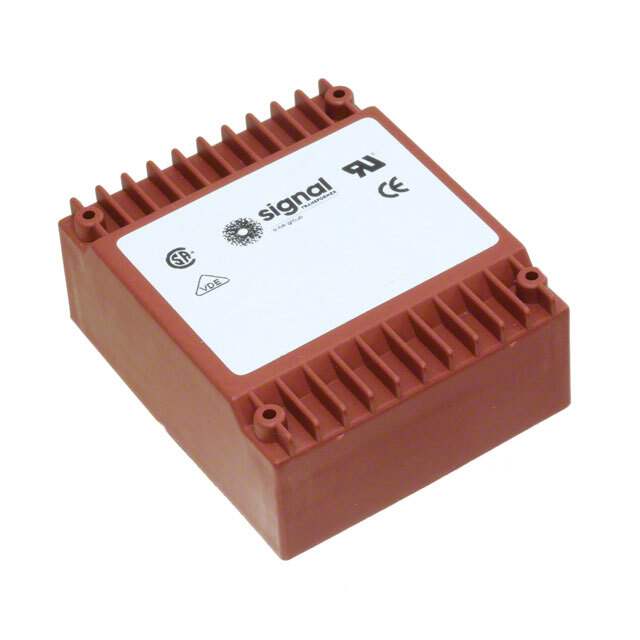

IF-30-10 Real Image
Same model may have multiple batches, images only for reference.

IF-30-10

Part No IF-30-10
Manufacturer Signal Transformer
Catalog Power Transformers
Description XFRMR SEMI-TORO 30VA THRU HOLE
Datasheet
IF-30-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Signal Transformer
Status Active
Type Semi-Toroidal
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 5V, Series 10V
Current - Output (Max) Parallel 6A, Series 3A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Maximum Power Dissipation 30 VA
Mounting Through Hole
Termination Style PC Pin
Height - Seated (Max) 35.30mm
Isolation Voltage 4000Vrms
Weight 20 lbs (9.1kg)
Win Source Part Number 141840-IF-30-10
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IF-30-10 CAD Model

Description

The 141840-IF-30-10 is a semi-toroidal transformer designed for use in power supply and other high voltage applications.

  • Power Dissipation: 30 VA (maximum)
  • Isolation Voltage: 4000Vrms
  • Supply and demand status: limited.
