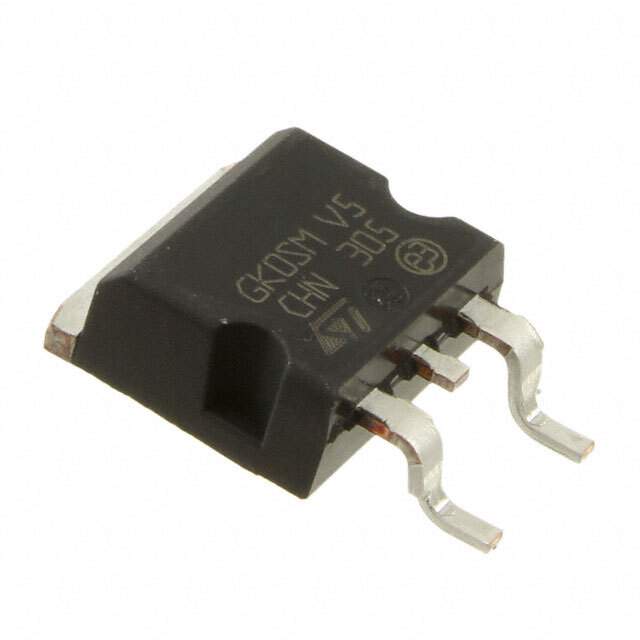

The STPS40170CGY-TR is a cutting-edge power Schottky rectifier manufactured by STMicroelectronics, a global leader in semiconductor solutions. This component is designed to offer high-efficiency power conversion in a compact and robust package, making it an ideal choice for a wide range of applications, including switch-mode power supplies, converters, free-wheeling diodes, and reverse battery protection.
Key Features
- High Junction Temperature Capability: This rectifier can operate at high temperatures, making it suitable for demanding applications where thermal conditions are a concern.
- Low Forward Voltage Drop: The STPS40170CGY-TR ensures minimal power loss during operation, enhancing overall efficiency and reducing thermal issues.
- High Surge Current Capability: Its design allows for handling high surge currents, offering reliability during transient conditions.
- Dual Center Tap Configuration: The device features a dual center tap configuration packaged in an insulated TO-220AB package, providing easy installation and thermal management.
Product Specifications
Parameter
Value
Average Rectified Current (Io)
2 x 20 A
Repetitive Peak Reverse Voltage (VRRM)
170 V
Forward Voltage Drop (Vf)
0.725 V at 20 A
Operating Junction Temperature (Tj)
-40°C to 175°C
Package
TO-220AB Insulated
Applications
The STPS40170CGY-TR is suitable for a variety of applications, including:
- Power Supply Management
- DC-DC Converters
- Battery Charging Systems
- Automotive Applications
- Power Factor Correction Circuits
With its robust design and superior electrical characteristics, the STPS40170CGY-TR from STMicroelectronics is a reliable and efficient solution for your power rectification needs.
