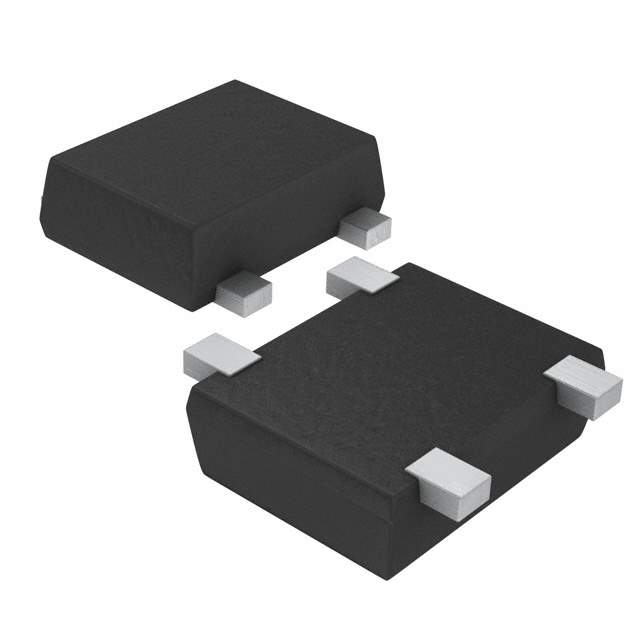

RB481YT2R Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Max) @ If 430mV @ 100mA
Current - Reverse Leakage @ Vr 30μA @ 10V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package EMD4
Win Source Part Number 027136-RB481YT2R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RB481YT2R CAD Model

Description

The RB481YT2R is a Schottky diode with a maximum reverse voltage of 30V and a forward voltage of 430mV at 100mA.

  • Voltage - DC Reverse (Vr) (Max): 30V
  • Voltage - Forward (Vf) (Max) @ If: 430mV @ 100mA
  • Current - Reverse Leakage @ Vr: 30μA @ 10V
  • Category: Discrete Semiconductor Products
  • Manufacturer: Rohm Semiconductor
  • Supply and Demand: Balanced
