The STTA3006PIRG, from STMicroelectronics, is a cutting-edge ultrafast high voltage diode designed specifically to meet the rigorous demands of high efficiency converters with improved reverse recovery performance. This diode is a key component for power supplies in a variety of applications, including industrial systems, telecommunications, and consumer electronics.

Key Features

• High Reverse Voltage Capability: With a peak reverse voltage (PRV) of 600V, the STTA3006PIRG is well-suited for applications requiring high voltage parameters.
• Ultrafast Recovery Time: The diode features an extremely fast recovery time, which minimizes losses in high-frequency operations and improves overall efficiency.
• Low Forward Voltage Drop: The low forward voltage drop (VF) ensures reduced power dissipation and enhances thermal efficiency, making it ideal for high-efficiency power supply designs.
• Soft Recovery Characteristics: Soft recovery behavior of the diode helps to reduce electromagnetic interference (EMI) and stress on the diode during turn-off, thus ensuring a longer operational life and reliability.
• High Surge Current Capability: The device can handle high surge currents, which is critical for protecting circuits during abnormal overvoltage conditions.

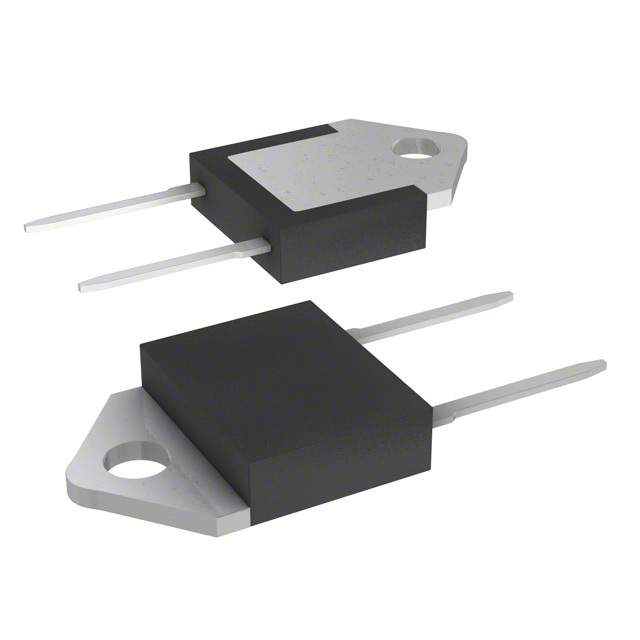

• Insulated Package: The STTA3006PIRG comes in an insulated package, providing excellent thermal performance and making it easier to mount with reduced insulation requirements.

Applications

• Switching power supplies
• Power factor correction circuits
• Snubber circuits
• Freewheeling diodes in converters and inverters
• Energy recovery circuits

Quality and Reliability

STMicroelectronics is renowned for its commitment to quality and reliability, and the STTA3006PIRG is no exception. Manufactured with robust materials and tested to stringent standards, this diode is built to deliver consistent performance even under challenging conditions.

Conclusion

The STTA3006PIRG is a testament to STMicroelectronics' expertise in semiconductor technology, offering a combination of high voltage rating, ultrafast recovery, and high surge current capability, all encapsulated in an insulated, thermally efficient package. It's an excellent choice for designers who require a reliable and efficient diode for their high-speed switching applications.
