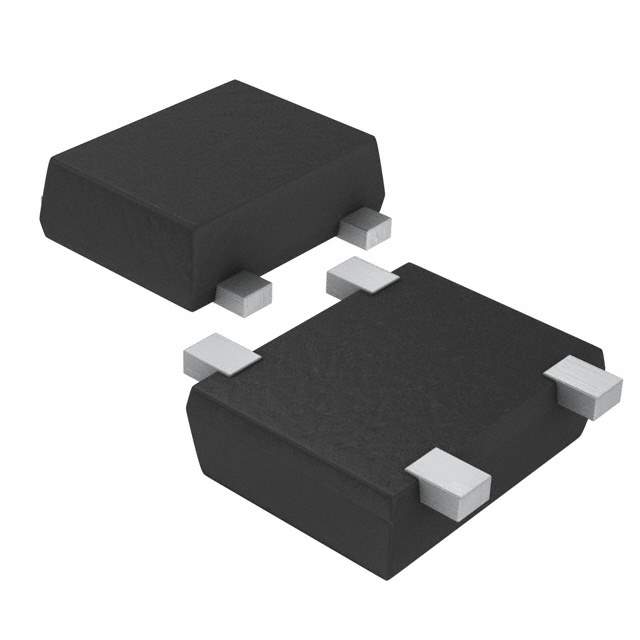

RB480Y-90T2R Real Image
Same model may have multiple batches, images only for reference.

RB480Y-90T2R

Part No RB480Y-90T2R
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 90V EMD4
Datasheet
RB480Y-90T2R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 90V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Max) @ If 690mV @ 100mA
Current - Reverse Leakage @ Vr 5μA @ 90V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package EMD4
Win Source Part Number 027132-RB480Y-90T2R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RB480Y-90T2R CAD Model

Description

The Rohm Semiconductor Schottky diode is a high-performance electronic component designed for use in various applications.

  • Voltage - Reverse (Max): 90V
  • Voltage - Forward: 690mV @ 100mA
  • Maximum Junction Temperature: 125°C
  • Current Rating: 100mA per diode
  • Package: EMD4
  • Current - Reverse Leakage: 5μA @ 90V
  • Packaging: Reel
  • Category: Discrete Semiconductor Products
