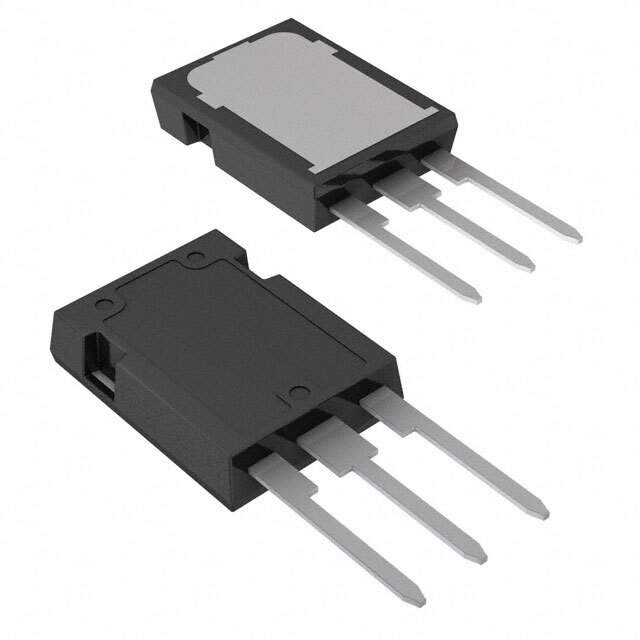

The STGY40NC60VD is a high-performance Insulated Gate Bipolar Transistor (IGBT) manufactured by STMicroelectronics, a leader in semiconductor solutions. This IGBT is designed to combine the high-speed performance of a MOSFET with the high voltage and current handling capabilities of a bipolar transistor. It is particularly suited for applications that require efficient energy conversion, such as power supplies, motor drives, and lighting systems.

Key Features

• Voltage & Current: The STGY40NC60VD offers a collector-emitter voltage (V<sub>CE) of 600V and a continuous collector current (I<sub>C) of 40A, making it suitable for handling high-power applications.
• Low On-Voltage Drop (V<sub>CE(sat)): The low on-voltage drop reduces conduction losses and improves overall efficiency, which is crucial for energy-sensitive designs.
• High-Speed Switching: With a maximum operating frequency of 20 kHz, this IGBT can switch rapidly, which is beneficial for applications requiring fast switching performance, such as inverter circuits.
• Co-Packaged Diode: The device includes a co-packaged fast recovery diode, which provides protection against reverse voltage transients and reduces component count in circuit designs.
• Robustness: The STGY40NC60VD is designed for ruggedness and reliability, with features that protect against overcurrent and overtemperature conditions.

Applications

The versatility of the STGY40NC60VD IGBT allows it to be used in a wide range of applications, including:

• Switch Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• Motor Drives
• Welding Equipment
• Inductive Heating
• High-Frequency Converters

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The STGY40NC60VD IGBT is built to meet the stringent standards required for industrial and commercial applications, ensuring both performance and longevity.

Environmental Considerations

The STGY40NC60VD is designed with environmental impact in mind. It complies with the RoHS directive, which restricts the use of certain hazardous substances in electrical and electronic equipment, making it an environmentally friendly choice for designers and manufacturers.
