STGIPS30C60 - Intelligent Power Module from STMicroelectronics

The STGIPS30C60 is a cutting-edge Intelligent Power Module (IPM) designed by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This IPM is part of the SLLIMM™-nano series, specifically engineered to enhance the performance and efficiency of motor drive applications. It is an ideal solution for a wide range of applications, including home appliances, air conditioners, fans, and other low-power motor drives.

With an integrated design, the STGIPS30C60 combines IGBTs, freewheeling diodes, and an array of control and protection features into a single package. This integration helps to reduce the complexity and size of the circuit, leading to a more compact and cost-effective design. The module is capable of handling a maximum operational voltage of 600V and provides a nominal current of 30A, making it suitable for a variety of power levels.

The STGIPS30C60 boasts an advanced level of integration, featuring built-in short-circuit protection, under-voltage lockout, over-temperature protection, and smart shutdown functionality. These features ensure the safe operation of the power module under a wide range of conditions, thereby protecting the application from potential damage.

One of the standout features of this IPM is its 3-phase inverter design, which is optimized for efficient and smooth control of motor phases. Additionally, the module offers a low-loss, fast-switching IGBT technology that contributes to the overall efficiency and performance of the system. The freewheeling diodes are optimized for low recovery losses, further enhancing the module's efficiency.

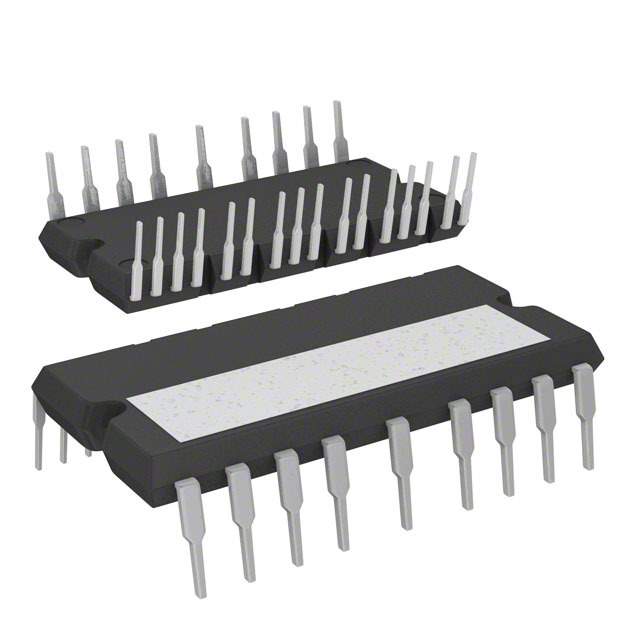

The STGIPS30C60 is housed in a compact and insulated package, which not only ensures excellent thermal performance but also provides a high level of electrical isolation. This IPM is also characterized by its ease of use, thanks to the straightforward interface that simplifies the PCB design process and accelerates time-to-market for designers and engineers.

In summary, the STGIPS30C60 from STMicroelectronics represents a highly integrated, efficient, and reliable solution for motor drive applications, offering designers a combination of performance, protection features, and ease of use that is hard to match.
