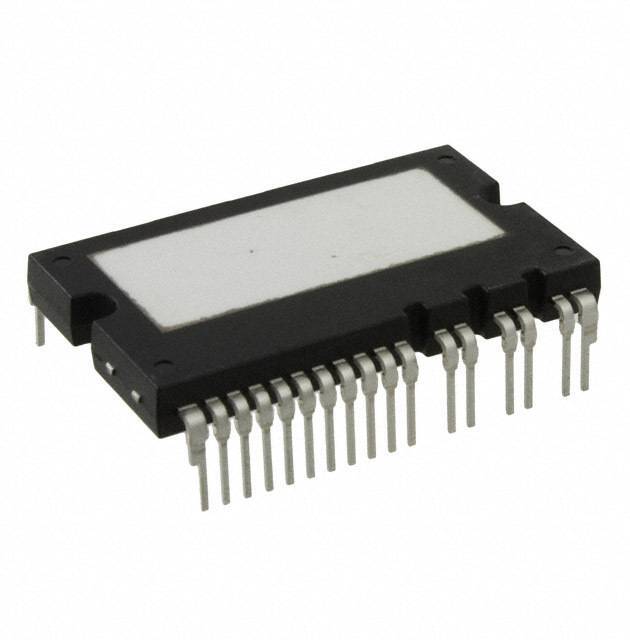

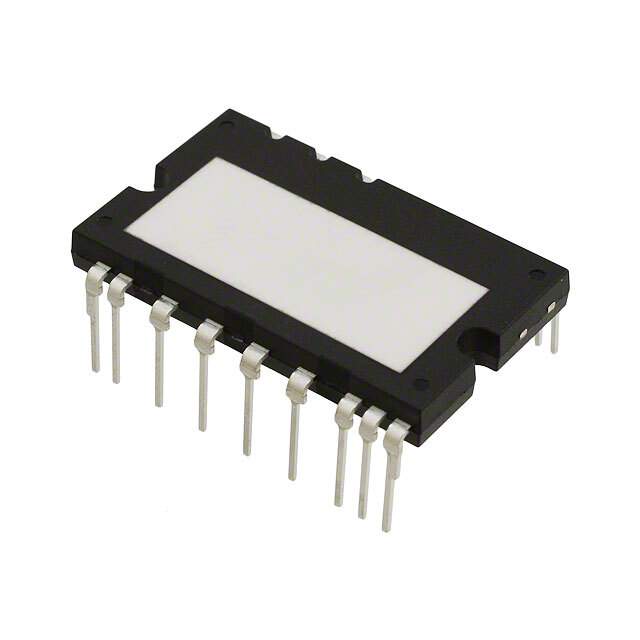

The FNB40560 is a state-of-the-art Integrated Power Module from ON Semiconductor, designed to deliver high-efficiency and reliability for a wide range of motor drive applications. This compact and robust module is an ideal solution for driving three-phase brushless DC (BLDC) motors, commonly used in applications such as air conditioners, refrigerators, washing machines, and industrial drives.
Key Features
- Integrated Design: The FNB40560 combines IGBTs, freewheeling diodes, and gate drivers in a single package, reducing the complexity and footprint of motor control circuitry.
- High-Voltage Capability: With a 600V rating, this module can handle the demands of high-voltage applications, ensuring smooth operation under varying electrical conditions.
- Advanced IGBT Technology: The use of field stop trench IGBTs provides low conduction and switching losses, leading to improved overall efficiency.
- Optimized Gate Drive: The built-in HVIC gate drivers provide reliable and efficient switching, with under-voltage lockout protection for added safety.
- Thermal Management: The module's design includes an isolated baseplate, which enhances thermal performance and extends the life of the device.
- Protection Features: The FNB40560 includes several protective features such as over-current protection, short-circuit protection, and over-temperature protection, ensuring robust performance under adverse conditions.
Applications
The versatility of the FNB40560 makes it suitable for a broad range of high-performance applications. Its efficiency and reliability are particularly beneficial in:
- Home appliances like air conditioners and washing machines
- Industrial drives and automation systems
- Fans, pumps, and blowers
- Electric vehicles and renewable energy systems
Technical Specifications
Parameter
Value
Configuration
3-Phase Inverter
Rated Voltage
600V
Current Rating
15A
Isolation Voltage
2500Vrms
With its combination of high performance, integration, and protection features, the FNB40560 from ON Semiconductor is a top-notch solution for designers looking to enhance the efficiency and reliability of their motor drive systems.
