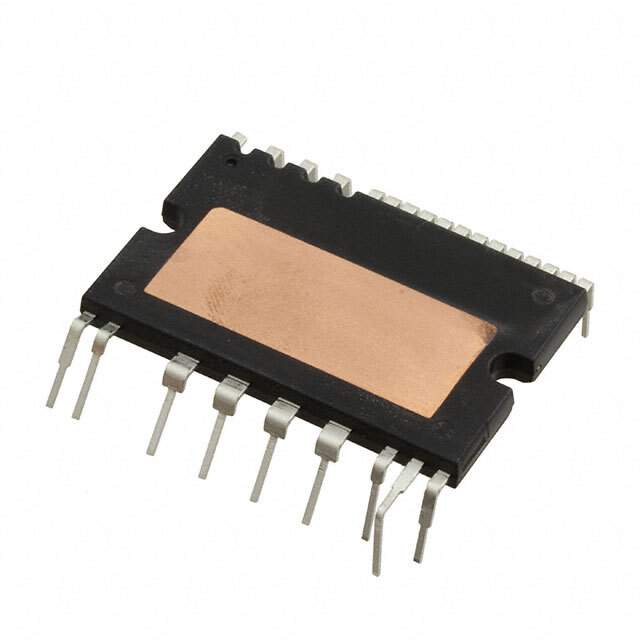

STGIB15CH60TS-E Integrated IGBT from STMicroelectronics

The STGIB15CH60TS-E is a cutting-edge Integrated IGBT (Insulated Gate Bipolar Transistor) module produced by STMicroelectronics, a global leader in semiconductor solutions. This module is designed to offer efficient and reliable performance for a wide range of power applications, such as motor drives, UPS systems, and inverter circuits. It is part of the SLLIMM™-nano series, which stands for Small Low-Loss Intelligent Molded Module, providing a compact and high-efficiency solution for electronic systems.

One of the key features of the STGIB15CH60TS-E is its three-phase bridge inverter structure, which includes six IGBTs with a built-in temperature sensor and overcurrent protection. This integration simplifies the design process by reducing the number of components and enhancing the overall system reliability. The module is rated for a maximum collector-emitter voltage of 600V, making it suitable for medium voltage applications.

The module is encapsulated in a fully isolated thermally enhanced package, ensuring excellent thermal conductivity and electrical isolation. This is critical for maintaining performance and longevity in demanding environments. With a low conduction and switching losses, the STGIB15CH60TS-E is optimized for high-frequency operation, which is essential for today's energy-efficient power electronic systems.

Furthermore, the STGIB15CH60TS-E comes with an integrated gate driver, which simplifies the interface between the power module and the control circuitry. This feature provides a high level of integration, reducing the complexity of gate drive circuitry and minimizing the risk of incorrect gate drive conditions, which can lead to IGBT failure.

STMicroelectronics has also placed a strong emphasis on safety and reliability with the STGIB15CH60TS-E. The module includes under-voltage lockout protection for both the high-side and low-side channels, ensuring that the IGBTs operate within their safe operating area. Additionally, the module's smart shutdown function provides a fast and safe IGBT turn-off in case of overcurrent, further protecting the module and the system it is part of.

In summary, the STGIB15CH60TS-E from STMicroelectronics is a sophisticated and highly integrated IGBT module that delivers superior performance, integration, and protection features for advanced power electronic systems.
