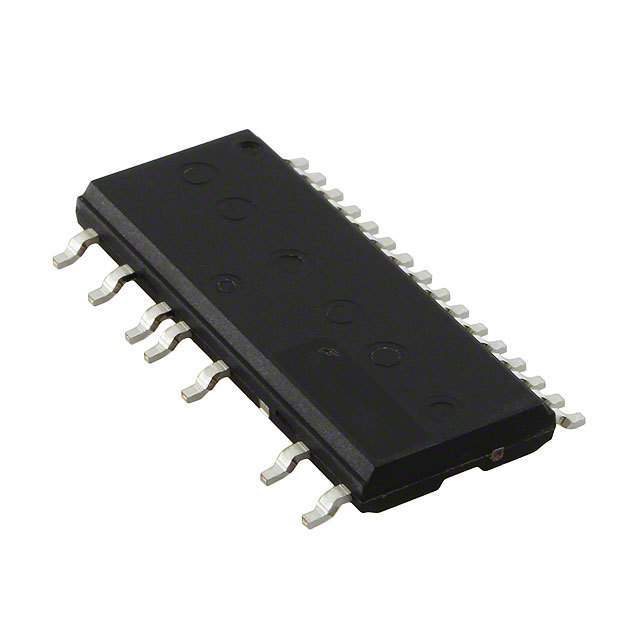

ON Semiconductor FSB50550U Smart Power Module

The ON Semiconductor FSB50550U is an advanced smart power module (SPM) that integrates power semiconductors, gate drivers, and protection features into a compact, high-performance package. Designed to streamline the development of motor drive applications, this module is ideal for a wide range of uses, from home appliances to industrial automation systems.

Key Features

• High Integration: The FSB50550U combines IGBTs, freewheeling diodes, and gate drivers into a single package, reducing the component count and simplifying the circuit design.
• Compact Design: With its small footprint, the module is perfect for applications where space is at a premium, enabling more compact and efficient designs.
• Optimized Performance: The module features low-loss IGBT technology and optimized gate drive circuits, resulting in high efficiency and excellent thermal performance.
• Built-in Protection: The FSB50550U includes under-voltage lockout, over-current protection, and thermal shutdown features to enhance system reliability and safety.
• Easy to Use: The module's built-in features simplify the design process, making it easier to implement with fewer external components required.
• Flexible Applications: Suitable for a range of AC motor drive applications, including fan motors, pump motors, and general-purpose inverters.

Specifications

The FSB50550U is characterized by its 500V rated voltage and 1A rated current, making it well-suited for small to medium power applications. The module's electrical isolation between the baseplate and the power terminals ensures safety and compliance with industry standards.

Applications

ON Semiconductor's FSB50550U is versatile enough to be used in a variety of applications where efficient power conversion and control are needed. Some common applications include:

• Home appliances such as washing machines and air conditioners
• Industrial drives and automation systems
• Fans, pumps, and other motor control systems

With its combination of integration, performance, and protection, the FSB50550U smart power module from ON Semiconductor is an excellent choice for designers looking to improve the efficiency and reliability of their motor drive systems.
