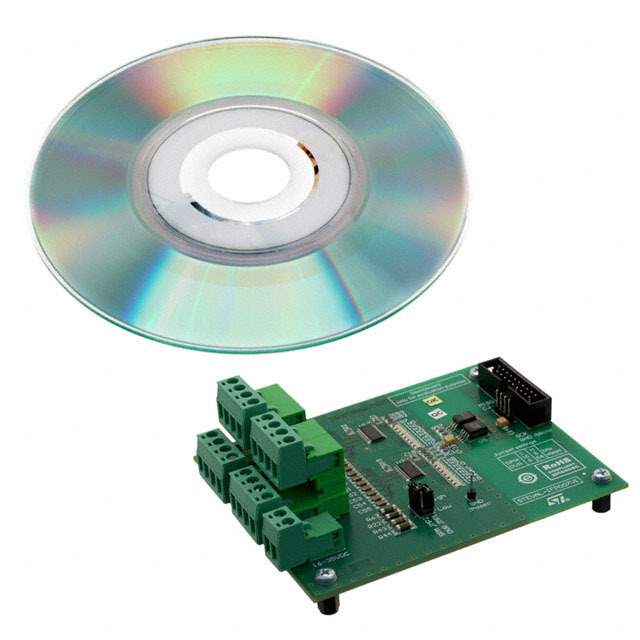

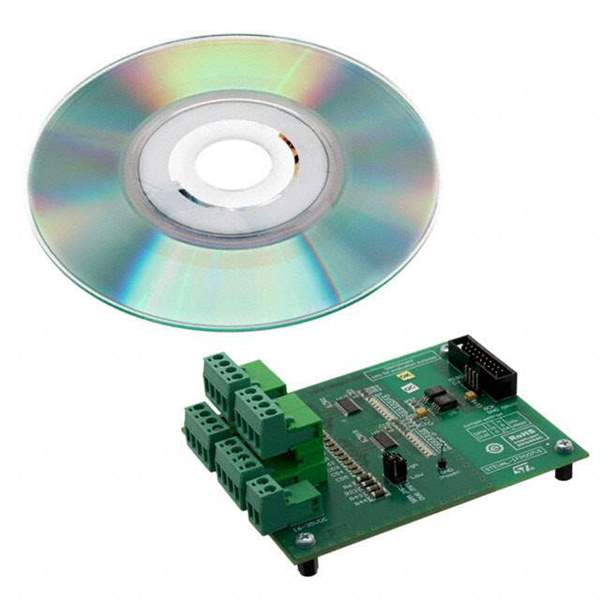

STEVAL-IFP007V1 - STMicroelectronics' Industrial Interface Board

The STEVAL-IFP007V1 from STMicroelectronics is a highly integrated industrial interface board designed to facilitate the development and testing of industrial applications. This evaluation board is built around the ISO8200BQ, an octal high-side smart power switch with a 24V nominal input voltage, making it ideal for factory automation and industrial process control.

The board is equipped with a plethora of features that make it a versatile solution for driving resistive, capacitive, and inductive loads. These features include an extensive range of protection mechanisms such as over-temperature protection, overload protection, and short-circuit protection. This ensures reliable operation under harsh industrial conditions and extends the longevity of the board and connected components.

Key Features:

• Eight high-side drivers with an output current limit of 700 mA per channel
• Integrated galvanic isolation for improved safety and noise immunity
• Diagnostic feedback via SPI, which includes status of output voltage, current, and temperature
• Non-dissipative short-circuit protection and under-voltage shutdown
• Extended temperature range suitable for industrial environments
• Compact and robust design that simplifies integration into existing systems

The STEVAL-IFP007V1 is a versatile platform that can be used to evaluate the performance of the ISO8200BQ in real-world conditions. The board includes a standard SPI interface for communication with a microcontroller, enabling users to easily integrate it into their projects and prototypes. With its comprehensive set of features and protections, the STEVAL-IFP007V1 is an ideal choice for developers looking to create reliable and efficient industrial control systems.

Applications:

• PLC (Programmable Logic Controllers)
• Industrial PC peripheral I/O
• Robotics and CNC machines
• Industrial automation and control

Whether you are developing applications for factory automation, designing peripheral I/O for industrial PCs, or creating control systems for robotics, the STEVAL-IFP007V1 provides a reliable and flexible platform to jump-start your design process and bring your industrial applications to life.
