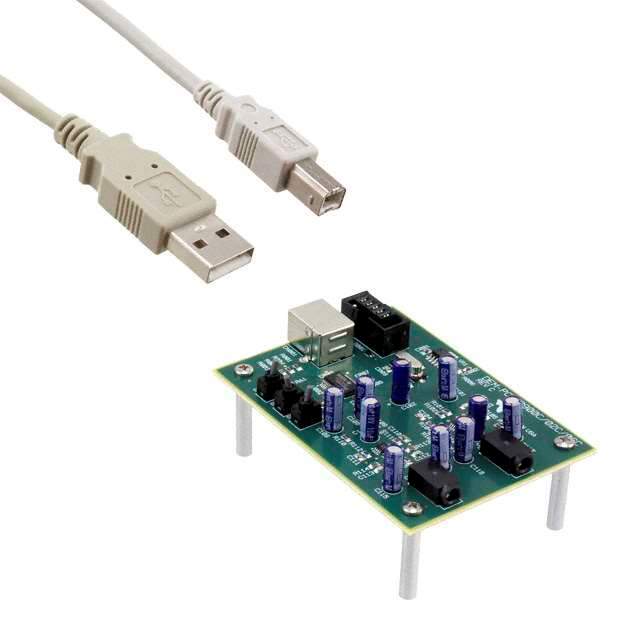

PCM2906CEVM-U Evaluation Module by Texas Instruments

The PCM2906CEVM-U from Texas Instruments is a comprehensive evaluation module designed to showcase the capabilities of the PCM2906C stereo audio codec with USB interface. This high-quality audio codec provides a simple interface between analog audio and digital sound, making it an ideal solution for a wide range of audio applications such as USB headphones, audio interface boxes, and music instruments.

Key Features:

• Integrated USB Interface: The PCM2906C codec integrates a full-speed USB 2.0 compliant interface for easy connection to any USB host, ensuring plug-and-play operation with minimal software overhead.
• High-Quality Audio: With 16-bit Delta-Sigma ADC and DAC, the PCM2906CEVM-U delivers high-quality sound with a dynamic range of 89 dB and a sampling rate of up to 48 kHz for both recording and playback.
• Flexible I/O Connectivity: The evaluation module includes line-level input and output, microphone input, and a headphone amplifier, offering versatile options for audio input and output configurations.
• Bus-Powered Operation: The device can be powered directly from the USB bus, eliminating the need for an external power supply and simplifying the overall system design.
• Onboard Indicators: LED indicators provide visual feedback on power status and signal clipping, aiding in the quick diagnosis of potential issues during evaluation.

Easy Evaluation and Prototyping:

The PCM2906CEVM-U is designed for ease of use, allowing engineers and designers to quickly assess the PCM2906C codec's performance. The module's plug-and-play nature, combined with its comprehensive feature set, makes it an excellent tool for rapid prototyping and testing in various audio applications.

Support and Documentation:

Texas Instruments provides extensive support and documentation for the PCM2906CEVM-U, including detailed datasheets, application notes, and design resources. This ensures that users have all the necessary information to integrate the evaluation module into their projects effectively.

Whether you are developing a new USB audio gadget or enhancing the audio capabilities of existing products, the PCM2906CEVM-U evaluation module from Texas Instruments offers a reliable and user-friendly platform for your audio design needs.
