Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 13.3V
Max Clamping Voltage 25.3V
Peak Pulse Current(Ippm) 157A (8/20μs)
Power Dissipation - Pd 600W
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SMB (DO-214AA)
Win Source Part Number 064822-SMBJ12CA-TR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SMBJ12CA-TR CAD Model

Description

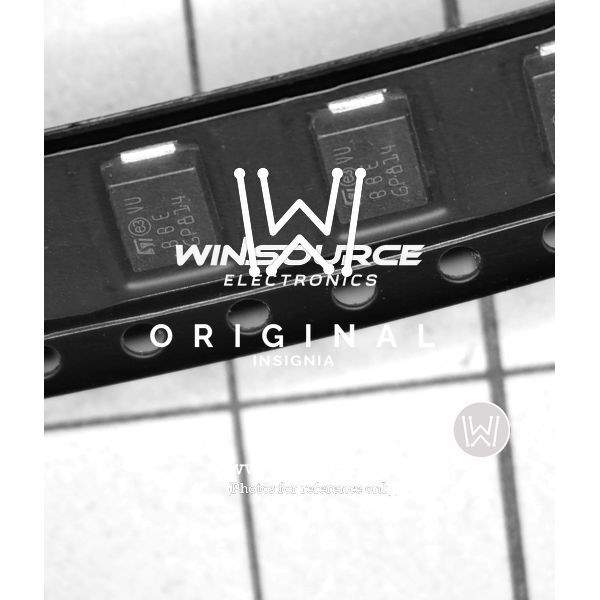

STMicroelectronics SMBJ12CA-TR - Transient Voltage Suppressor

The SMBJ12CA-TR from STMicroelectronics is a robust transient voltage suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage spikes and surges. This component is a bidirectional TVS diode, meaning it can clamp transient voltages that may occur in both positive and negative directions. It is an essential device for safeguarding circuits against the potentially damaging effects of transient voltage events such as electrostatic discharge (ESD), electrical fast transients (EFT), and secondary effects of lightning strikes.

The SMBJ12CA-TR has a standoff voltage of 12V, which makes it suitable for a wide range of applications where this voltage level is common, including consumer electronics, automotive systems, and industrial control circuits. Its clamping voltage is carefully designed to engage during overvoltage events without disrupting the normal operation of the protected circuit.

This TVS diode is packaged in the SMB (DO-214AA) package, which is known for its compact footprint and excellent power dissipation characteristics. The 'TR' designation indicates that the component is provided in tape and reel packaging, which is ideal for automated assembly processes, ensuring efficient and reliable integration into PCBs (printed circuit boards).

Key features of the SMBJ12CA-TR include:

  • Peak pulse power dissipation of 600W (@10/1000μs waveform).
  • Fast response time, typically less than 1.0 picosecond from 0V to BV min.
  • Low incremental surge resistance.
  • Operating junction and storage temperature range of -55°C to +150°C.
  • Meets ISO 7637-2 surge specifications (for automotive).
  • Compliance with the following standards: IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT), and IEC 61000-4-5 (Surge).

In summary, the SMBJ12CA-TR TVS diode from STMicroelectronics provides high-quality transient voltage suppression for sensitive circuits. Its quick response time, high surge capability, and compliance with international standards make it a reliable choice for designers looking to enhance the durability and reliability of their electronic systems against transient events.
