Introducing the EVAL6226QR from STMicroelectronics

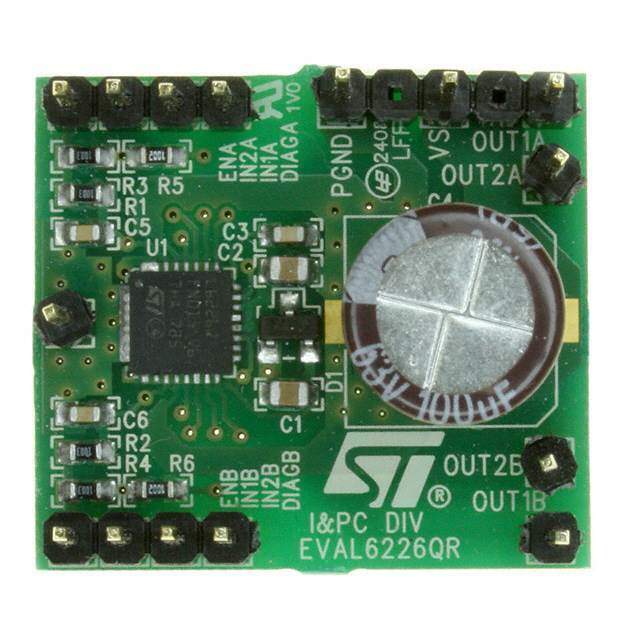

The EVAL6226QR is a state-of-the-art evaluation board designed by STMicroelectronics, specifically tailored for the L6226Q, a high-performance triple DMOS full-bridge driver. This advanced product is engineered to provide an efficient and flexible solution for driving both bipolar stepper motors and brush DC motors, making it an ideal choice for a wide range of applications, including industrial automation, robotics, and consumer electronics.

Key Features

• Integrated Triple DMOS Full-Bridge: The EVAL6226QR is built around the L6226Q IC, which integrates three half-bridges capable of delivering up to 1 A each, with a voltage range from 8 V to 52 V. This allows for the direct drive of motors with high efficiency and minimal heat generation.
• Advanced Protection Systems: The board includes overcurrent protection, thermal shutdown, and under-voltage lockout features, ensuring the safety and longevity of both the evaluation board and the motor under test.
• User-Friendly Interface: Equipped with user-accessible pins and connectors, the EVAL6226QR provides an easy-to-use interface for connecting the motor, power supply, and control signals.
• Configurability: The evaluation board offers configurable parameters such as the PWM frequency and decay mode selection, allowing for fine-tuning to meet specific application requirements.
• Diagnostic Features: Onboard LEDs provide immediate visual feedback for power status, overcurrent, and thermal shutdown conditions, aiding in quick diagnostics and troubleshooting.

Applications

The versatility of the EVAL6226QR makes it suitable for a diverse array of applications. It is particularly well-suited for driving stepper motors in printers, scanners, and surveillance cameras, as well as for controlling DC motors in vending machines, automated guided vehicles (AGVs), and home appliances.

Conclusion

STMicroelectronics' EVAL6226QR evaluation board is an exceptional tool for developers and engineers looking to explore the capabilities of the L6226Q full-bridge driver IC. With its robust design, comprehensive protection features, and ease of use, this evaluation board is an invaluable asset for developing sophisticated motor control systems in a multitude of industrial and consumer applications.
