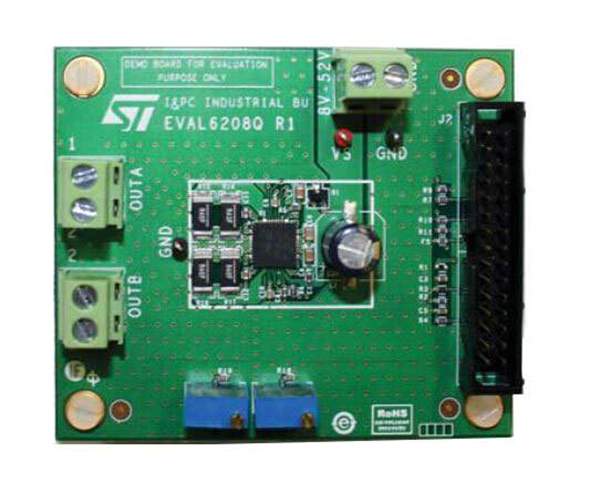

The EVAL6208Q from STMicroelectronics is a high-performance evaluation board designed for the L6208Q, a DMOS driver for bipolar stepper motors. This evaluation board is a comprehensive solution that allows designers and engineers to explore the capabilities and features of the L6208Q driver in a practical and user-friendly environment.

Key Features

• Integrated DMOS Outputs: The board's L6208Q chip features fully integrated DMOS power stages that can deliver up to 2.8A of current, making it suitable for driving a wide range of stepper motors.
• Operating Voltage Range: The EVAL6208Q operates over a wide supply voltage range from 8 V to 52 V, providing the flexibility needed to accommodate various application requirements.
• Advanced Control Features: The evaluation board includes features such as programmable mixed, fast, and slow current decay modes, along with on-board configurable full-step, half-step, and microstepping modes (up to 1/16 step).
• Protection Mechanisms: The board is equipped with overcurrent protection, thermal shutdown, and under-voltage lockout to ensure the safe operation of the motor and the driver.
• Diagnostic Features: On-board LEDs indicate the status of the board's power stage, providing immediate visual feedback for troubleshooting and diagnostics.
• Easy-to-use Interface: The EVAL6208Q includes a user-friendly interface with directional control, step and enable inputs, and a potentiometer for current control, allowing for easy experimentation and testing.

Applications

The EVAL6208Q is an ideal platform for developing applications that require precise control of stepper motors, such as:

• Printers and scanners
• CNC machines
• Robotics
• Medical equipment
• Surveillance systems

With its robust design and versatile features, the EVAL6208Q evaluation board is an excellent tool for engineers and designers looking to harness the full potential of the L6208Q stepper motor driver in their next project.
