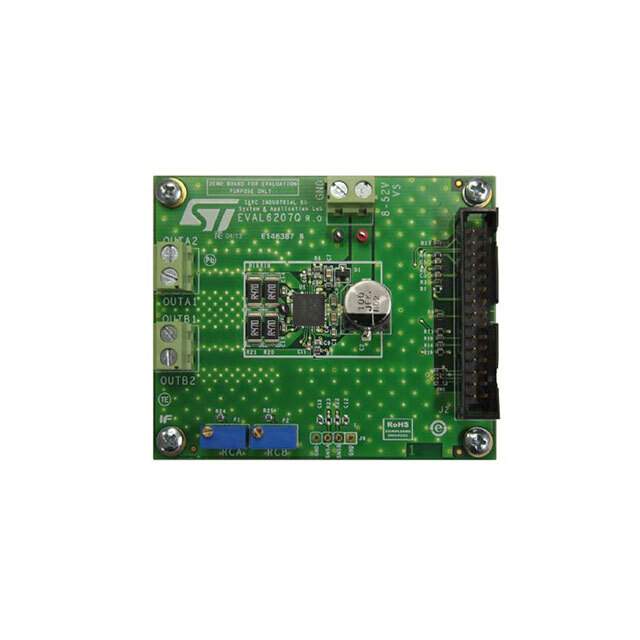

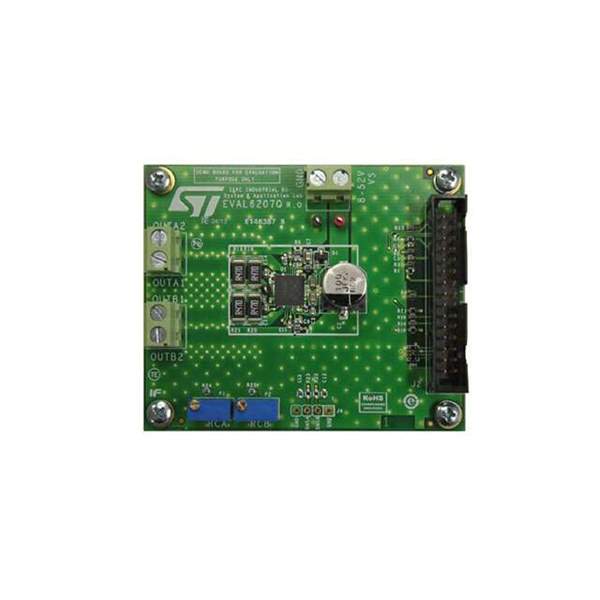

The EVAL6207Q from STMicroelectronics is a state-of-the-art evaluation board designed for engineers and developers looking to explore the capabilities of the L6207Q, a DMOS dual full-bridge driver. This evaluation board is an ideal solution for driving bipolar stepper motors or bidirectional control of two DC motors.

Key Features

• Integrated Power Stage: The EVAL6207Q features an advanced power stage with a low RDS(on) of 0.3Ω typical value at 25°C. This ensures efficient operation and minimizes power dissipation.
• Dual Full-Bridge Configuration: The board is capable of driving two independent DC motors or one stepper motor in bipolar configuration, offering flexibility for various application requirements.
• Operating Voltage Range: The board operates over a wide supply voltage range from 8 V to 52 V, making it suitable for a diverse set of applications.
• Current Control: On-board adjustable current control allows for precise management of the motor phases, which is essential for reducing noise and improving motor performance.
• Protection Features: The EVAL6207Q is equipped with a range of protection features including thermal shutdown, under-voltage lockout, and non-dissipative overcurrent protection, ensuring the longevity and reliability of the application.
• User-Friendly Interface: The board includes convenient direction and enable inputs for each bridge as well as LED indicators for easy monitoring of the circuit status.

Applications

The EVAL6207Q is versatile and can be used in a variety of applications such as:

• Office Automation
• Factory Automation
• Robotics
• Controlled Drives

Design Support

STMicroelectronics provides comprehensive support for the EVAL6207Q, including detailed documentation, reference designs, and technical support to assist developers in the rapid integration of the board into their projects.
