Same model may have multiple batches, images only for reference.

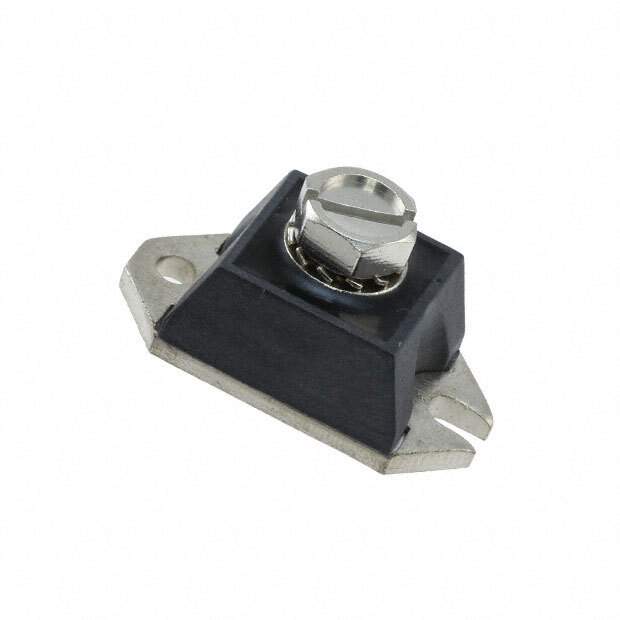

249NQ150-1 Real Image
Same model may have multiple batches, images only for reference.

249NQ150-1

Part No 249NQ150-1
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description PIV 150V IO 240A VF 1 07V PACKAG
Datasheet
249NQ150-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Bulk
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 150V
Voltage - Forward (Vf) (Max) @ If 1.07V @ 240A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 6mA @ 150V
Capacitance @ Vr, F 6000pF @ 5V, 1MHz
Mounting Chassis Mount
Case / Package PRM1-1 (Half Pak Module)
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 128856-249NQ150-1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 249NQ150-1 CAD Model

Description

Product Overview: 249NQ150-1

The 249NQ150-1 is a high-performance rectifier diode designed for use in a variety of power electronics applications. With its robust construction and efficient operation, this component is an ideal choice for designers seeking reliability and performance.

Features and Benefits

  • High current capability
  • Strong surge handling capacity
  • Low forward voltage drop
  • Reliable and durable construction

Applications and Projects

  • DC power supplies
  • Inverters
  • Battery chargers
  • Motor control circuits

This rectifier diode is perfect for both industrial and consumer applications, demonstrating excellent thermal stability and electrical performance.
