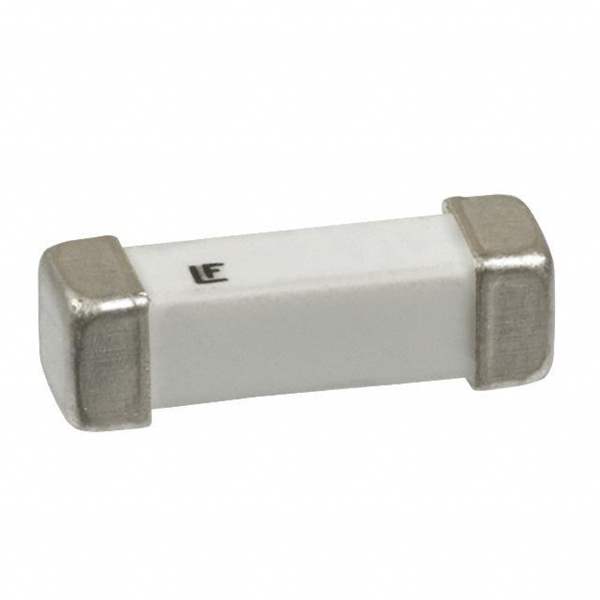

04611.25ER

Part No 04611.25ER
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE BRD MNT 1.25A 600VAC/80VDC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount
Current Rating 1.25A
Voltage Rating - AC 600V
Voltage Rating - DC 80V
Response Time Slow
Applications Telecom
Approvals CSA, UR
Temperature Range - Operating -55°C to 125°C
Breaking Capacity @ Rated Voltage 60A AC, 100A DC
Mounting SMD (SMT)
Dimension 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm)
Nominal Melting - I2t 16.5
Nominal Cold Resistance 0.11 Ohm
Win Source Part Number 005062-04611.25ER
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Safety, Communications & Networking
Family Name 461
Introduction Date January 01, 2008
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian 04611.25ER CAD Model

Alternative Products

Alternative Product Part Number Manufacturer Package Country Similarity
TCP1.25-R Eaton 2-SMD, Square End Block United States PIN-TO-PIN

Description

Product Description

The 04611.25ER stands out as a premier fuse solution, adept at shielding electronics against potential damage from unexpected overcurrent scenarios. It’s engineered to perform reliably in diverse applications, making it an essential component for high-standard safety management.

Applications

  • HVAC Systems
  • Grid Power Management
  • Instrumentation and Test Equipment
  • Renewable Energy Systems

Features and Benefits

  • Durable design for extended lifecycle use
  • Quick fusible element action to minimize harm from overload
  • Resistance to environmental stress factors
  • Precision manufacturing for consistent performance

Given its robust design and reliable function, the 04611.25ER is a trusted choice for comprehensive circuit protection, ensuring low maintenance and cost efficiency over time.
