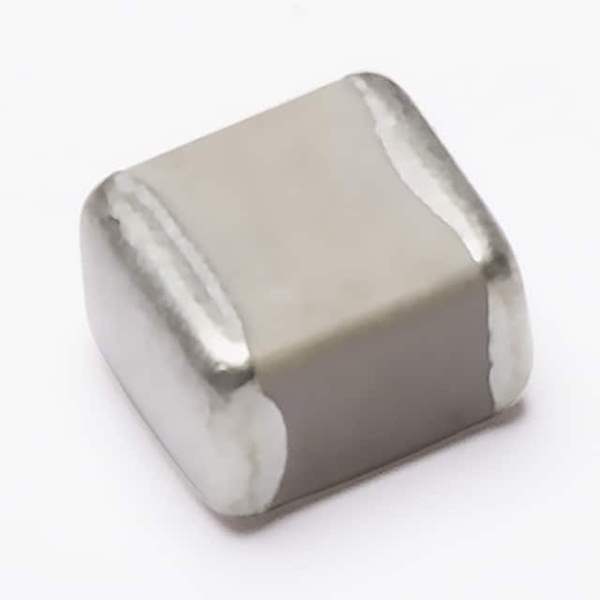

Same model may have multiple batches, images only for reference.

501CHB3R9BSLE

Name: 501CHB3R9BSLE
Brand: EXXELIA Temex
SKU: 1197425
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	501CHB3R9BSLE
Manufacturer	EXXELIA Temex
Catalog	Ceramic Capacitors
Description	CAP CER 3.9PF 500V P100 1111 / 3.9 pF ±0.1pF 500V Ceramic Capacitor P100 1111 (2828 Metric)
Datasheet	501CHB3R9BSLE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Ceramic Capacitors
Mfr	EXXELIA Temex
Series	CH
Package	Tape & Reel (TR)
Capacitance	3.9 pF
Tolerance	±0.1pF
Voltage - Rated	500V
Temperature Coefficient	P100
Temperature Range - Operating	-55°C ~ 150°C
Features	High Q, Low Loss, Ultra Low ESR
Applications	RF, Microwave, High Frequency
Mounting Type	Surface Mount, MLCC
Package / Case	1111 (2828 Metric)
Dimension	0.110" L x 0.110" W (2.80mm x 2.80mm)
Thickness (Max)	0.102" (2.60mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.24.0020
Other Names	2821-501CHB3R9BSLETR
Standard Package	1,000
Win Source Part Number	1197425-501CHB3R9BSLE
Ultra Librarian 3D Model	Ultra Librarian 501CHB3R9BSLE CAD Model

Description

The EXXELIA Temex 501CHB3R9BSLE is a ceramic capacitor that is designed for use in RF, microwave, and high frequency applications.

Capacitance: 3.9 pF
Voltage Rating: 500V
Features: High Q, low loss, and ultra-low ESR
Packaging: Tape and Reel
Mounting: Surface Mount Technology
Failure Rate: Low
REACH: Unaffected
