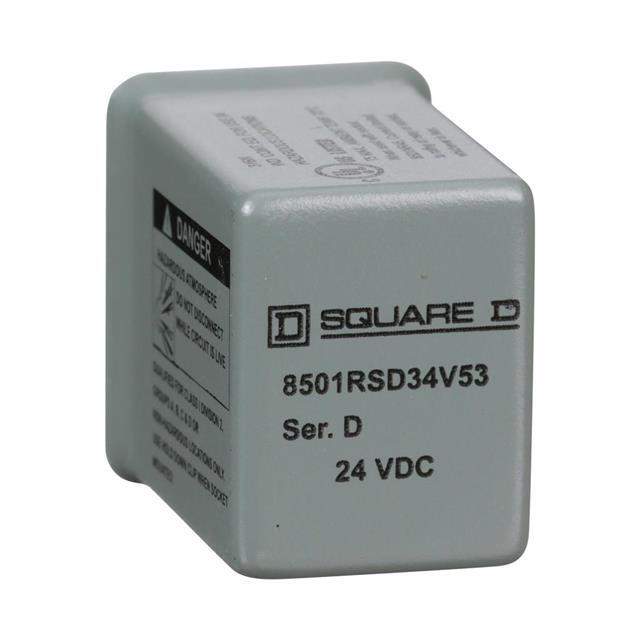

8501RSD34V53 Real Image
Same model may have multiple batches, images only for reference.

8501RSD34V53

Part No 8501RSD34V53
Manufacturer Schneider Electric
Catalog Power Relays, Over 2 Amps
Description PLUG IN RELAY, TYPE R, HERMETICA / General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
Datasheet
8501RSD34V53 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Schneider Electric
Series Square D
Package Box
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5 A
Switching Voltage 240VAC, 30VDC - Max
Coil Type Non Latching
Termination Style Plug In
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1340127-8501RSD34V53
Ultra Librarian 3D Model Ultra Librarian 8501RSD34V53 CAD Model

Description

The Square D 1340127-8501RSD34V53 is a power relay that has a 4PDT (4 Form C) contact form and a contact material made of silver tin oxide (AgSnO).

  • Contact Form: 4PDT (4 Form C)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 24VDC
  • Contact Rating: 5A
  • Type: General Purpose
  • Switching Voltage: 240VAC and 30VDC
  • Release Time: 20ms
  • Operate Time: 20ms
  • Mounting Type: Socketable
  • Operating Temperature: -40°C to 55°C
