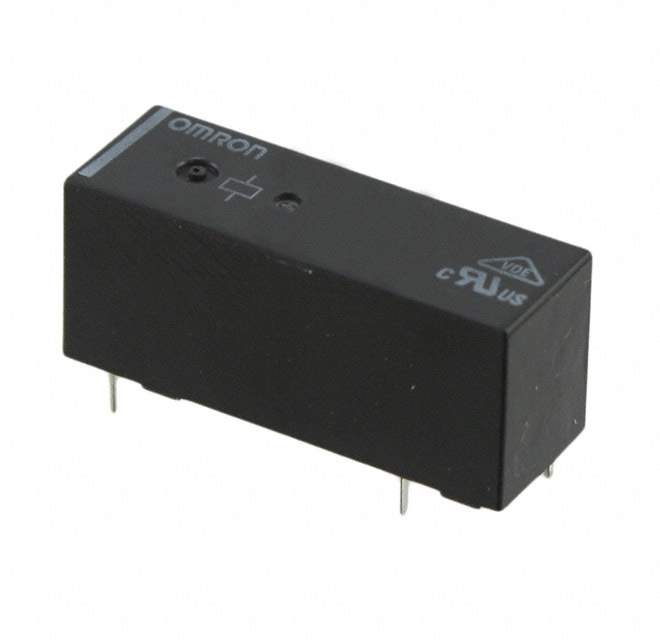

G6RL-1A-ASI-DC12 Real Image
Same model may have multiple batches, images only for reference.

G6RL-1A-ASI-DC12

Part No G6RL-1A-ASI-DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6RL
Package Bulk
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC - Nom
Coil Current 18.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Indium (AgSnIn)
Relay Type General Purpose
Coil Resistance 654 Ohms
Base Product Number G6RL
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1336878-G6RL-1A-ASI-DC12
Ultra Librarian 3D Model Ultra Librarian G6RL-1A-ASI-DC12 CAD Model

Description

The Omron Electronics Inc-EMC Div G6RL series is a power relay that has a contact form of SPST-NO (1 Form A) and a contact material of silver tin indium (AgSnIn). Omron Electronics Inc-EMC Div

  • Relay Type: Power Relay
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Indium (AgSnIn)
  • Coil Voltage: 12VDC
  • Coil Resistance: 654 Ohms
  • Coil Current: 18.3 mA
  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
  • Operating Temperature: -40°C to 85°C
  • Seal Rating: Sealed-Flux Protection
  • Packaging: Bulk
  • Standard Package: 100 pieces
  • Application: General-Purpose
