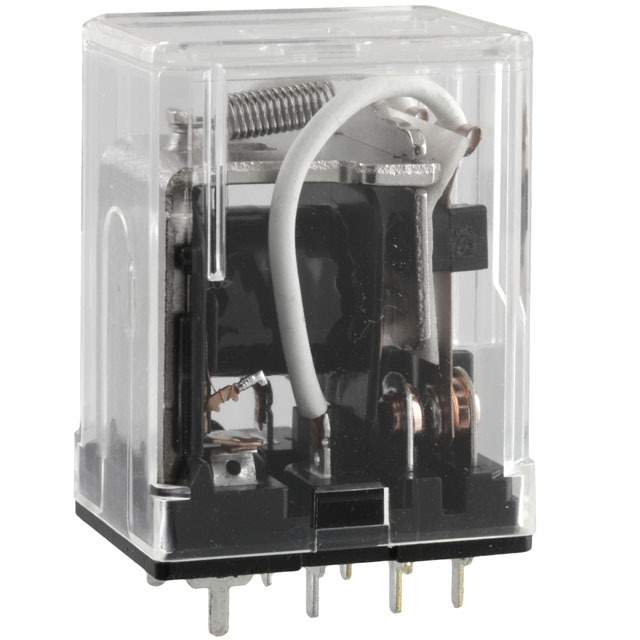

HL1-HP-DC24V-F Real Image
Same model may have multiple batches, images only for reference.

HL1-HP-DC24V-F

Part No HL1-HP-DC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 15A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series HL
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 15 A
Switching Voltage 125VAC - Nom
Coil Current 37 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -50°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 650 Ohms
Base Product Number HL1-HP
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1339207-HL1-HP-DC24V-F
Ultra Librarian 3D Model Ultra Librarian HL1-HP-DC24V-F CAD Model

Description

The HL1-HP-DC24V-F from Panasonic is a power relay electronic component with a switching voltage of 125VAC and a contact rating of 15A.

  • Switching Voltage: 125VAC
  • Contact Rating: 15A
  • Coil Voltage: 24VDC
  • Coil Resistance: 650 Ohms
  • Standard Package: 20 pieces
