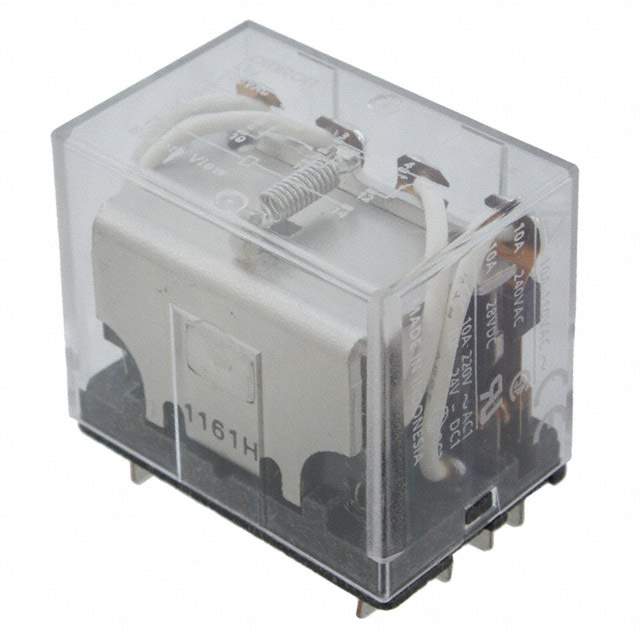

LY4-AC120 Real Image
Same model may have multiple batches, images only for reference.

LY4-AC120

Part No LY4-AC120
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 10A 120V  /  General Purpose Relay 4PDT (4 Form C) 120VAC Coil Socketable
Datasheet
LY4-AC120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Automation and Safety
Series LY
Package Bulk
Mounting Type Socketable
Coil Voltage 120VAC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 16.4 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 96 VAC
Must Release Voltage 36 VAC
Operate Time 25 ms
Release Time 25 ms
Temperature Range - Operating -25°C ~ 40°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 2.2 kOhms
Base Product Number LY4
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0075
Other Names Z1683,LY4AC120,LY4-AC120-ND
Standard Package 20
Win Source Part Number 1181981-LY4-AC120
Ultra Librarian 3D Model Ultra Librarian LY4-AC120 CAD Model

Description

The Omron LY4-AC120 is a 4PDT (4 Form C) power relay.

  • Contact Rating: 10A
  • Switching Voltage: 250VAC, 125VDC - Max
  • Coil Voltage: 120VAC
  • Coil Resistance: 2.2 kOhms
  • Mounting Type: socketable
  • Coil Type: non-latching
  • Temperature Range: -25°C to 40°C
  • Type: general-purpose relay
  • Supplied: in bulk
  • Standard Package: 20
