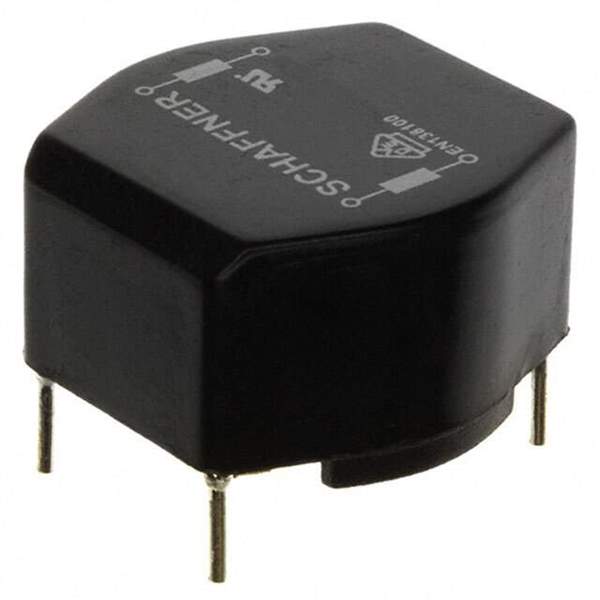

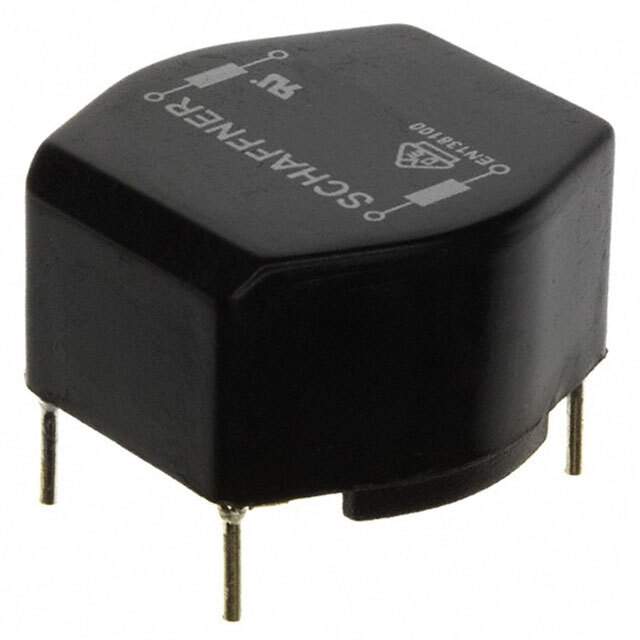

RN114-2-02 Real Image
Same model may have multiple batches, images only for reference.

RN114-2-02

Part No RN114-2-02
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 4.2MH 2A 2LN TH / 4.2 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2A (Typ) DCR 102mOhm (Typ)
Datasheet
RN114-2-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tray
Product Status Obsolete
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 4.2 mH @ 1 kHz
Current Rating (Max) 2A (Typ)
DC Resistance (DCR) (Max) 102mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency UR, VDE
Mounting Type Through Hole
Dimension 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) 0.531" (13.50mm)
Package / Case Horizontal, 4 PC Pin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 800377,RN114202,-RN 114 2 /02,288-211,817-1542
Standard Package 25
Win Source Part Number 1187749-RN114-2-02
Ultra Librarian 3D Model Ultra Librarian RN114-2-02 CAD Model

Description

The Schaffner EMC Inc. RN114-2-02 is an electronic component designed for use in various applications. The product is categorized as filters>common mode chokes, and it is manufactured by Schaffner EMC Inc. It is a versatile component that can be used in various applications. The RN114-2-02 features a voltage rating of 250V AC, a current rating of 2A (Typ), and a DC resistance of 102mOhm (Typ). It has a height of 0.531" (13.50mm) and a number of lines of 2. The product is obsolete and has been cross-referenced with alternative parts such as 800377 and RN 114-2-02.
