Product Overview: LTC6409CUDB#TRPBF from Analog Devices Inc.

The LTC6409CUDB#TRPBF is a high-performance, differential amplifier designed by Analog Devices Inc., tailored for driving high-speed analog-to-digital converters (ADCs) or buffering high-speed signals. This amplifier boasts an impressive slew rate and low distortion, making it an ideal choice for demanding applications such as medical imaging, communications, and industrial instrumentation.

Key Features

• High Frequency Performance: The LTC6409CUDB#TRPBF operates with a bandwidth of up to 10GHz, ensuring high-speed signal processing capabilities for advanced applications.
• Low Distortion: With its low harmonic distortion, the amplifier provides clean signal amplification, which is crucial for high-fidelity signal chain applications.
• Adjustable Gain: The gain of the amplifier is adjustable by external resistors, giving designers the flexibility to tailor the amplification to specific system requirements.
• Single-Ended to Differential Conversion: The device can convert single-ended inputs to differential outputs, which is beneficial for driving ADCs that require differential inputs.
• Power Efficiency: It operates with a supply voltage ranging from 2.7V to 5.25V, allowing for efficient power consumption in a variety of system configurations.

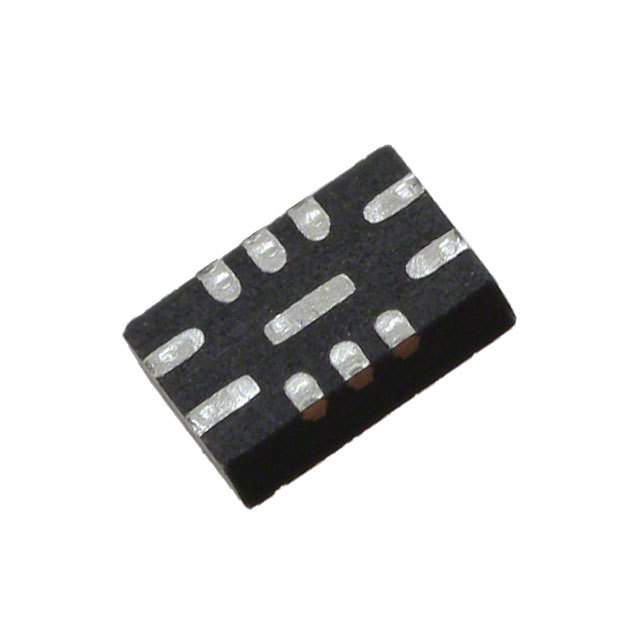

• Robust Packaging: The LTC6409CUDB#TRPBF comes in a compact, 3mm x 2mm DFN package, which is suitable for space-constrained applications.

Applications

The LTC6409CUDB#TRPBF is versatile and can be used across a wide range of applications, including:

• High-speed data acquisition systems
• Communications infrastructure
• Imaging equipment
• Test and measurement devices
• Aerospace and defense electronics

This differential amplifier from Analog Devices Inc. is a reliable solution for designers looking to enhance their system's performance with high-speed, low-distortion signal amplification. Its versatility and robustness make it an excellent choice for a multitude of advanced electronic applications.
