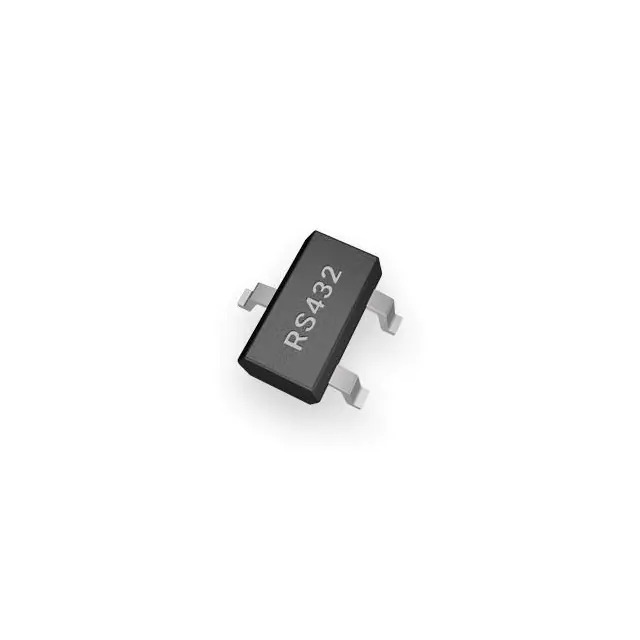

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Reference
Mfr Runic Technology
Series -
Package Tape & Reel
Product Status Active
Reference Type Shunt
Output Type Programmable
Voltage - Output (Min/Fixed) 2.5V
Voltage - Output (Max) 36 V
Current - Output 100 mA
Tolerance ±0.5%
Temperature Coefficient 50ppm/°C Typical
Noise - 0.1Hz to 10Hz -
Noise - 10Hz to 10kHz -
Voltage - Input -
Current - Supply -
Current - Cathode 500 µA
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3
Base Product Number RS432
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1353524-RS432AYSF3
Ultra Librarian 3D Model Ultra Librarian RS432AYSF3 CAD Model

Description

The RS432AYSF3 is a voltage reference IC from Runic Technology.

  • Temperature Range: -40°C to 125°C
  • Package: TO-236-3, SC-59, SOT-23-3
  • Mounting Type: Surface Mount
  • Tolerance: ±0.5%
  • Temperature Coefficient: 50ppm/°C
  • Output Voltage (min): 2.5V
  • Output Voltage (max): 36V
  • Current Output: 100mA
