Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Bulk
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.6 A @ 120 Hz
Ripple Current @ High Frequency 2 A @ 100 kHz
Impedance 29 mOhms
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.319" (33.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 35YXF2200MEFC16X31.5-ND,1189-2253
Standard Package 400
Win Source Part Number 1149447-35YXF2200MEFC16X31.5
Ultra Librarian 3D Model Ultra Librarian 35YXF2200MEFC16X31.5 CAD Model

Description

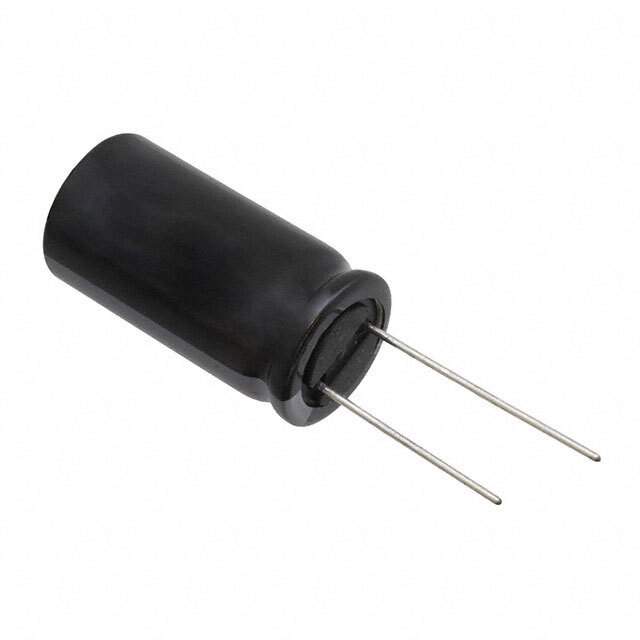

The YXF series aluminum electrolytic capacitor is a general-purpose capacitor with a capacitance of 2200 µF and a voltage rating of 35 V. Rubycon manufactures it.

  • Series: YXF
  • Capacitance: 2200 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Impedance: 29 mOhms
  • ESR: Not Specified
  • Lifetime: 10000 hours @ 105°C
  • Polarity: Polarized
  • Ripple Current @ Low Frequency: 1.6 A @ 120 Hz
  • Ripple Current @ High Frequency: 2 A @ 100 kHz
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Diameter: 0.630" (16.00mm)
  • Height: 1.319" (33.50mm)
