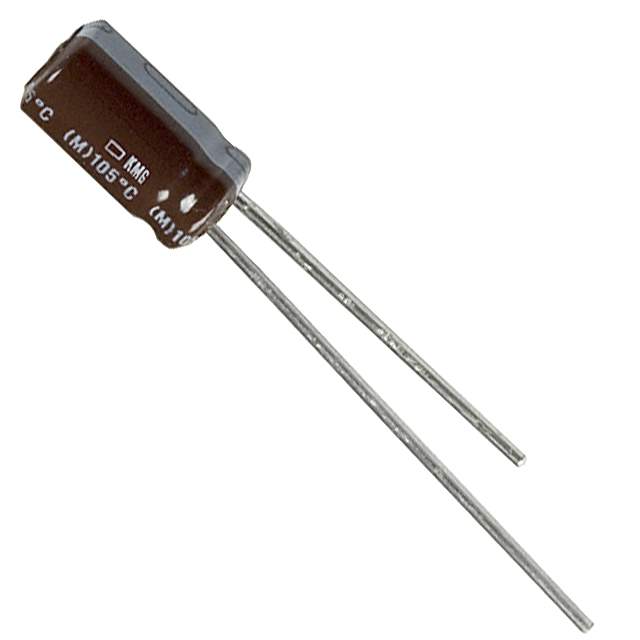

EKMG100ELL331MF11D Real Image
Same model may have multiple batches, images only for reference.

EKMG100ELL331MF11D

Part No EKMG100ELL331MF11D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 10V RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer United Chemi-Con
Packaging Bulk
Capacitance 330μF
Tolerance ±20%
Voltage - Rated 10V
Lifetime at Temp. 1000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications Use For General
Ripple Current at Low Frequency 200mA at 120Hz
Ripple Current at High Frequency 300mA at 100kHz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.492" (12.50mm)
Mounting Style Through Hole
Manufacturer Package Radial, Can
Manufacturer Pack Quantity 2,000
MSL Level Not Applicable
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800819-EKMG100ELL331MF11D
Ultra Librarian 3D Model Ultra Librarian EKMG100ELL331MF11D CAD Model

Description

The United Chemi-Con EKMG100ELL331MF11D is a bulk capacitor.

  • Capacitance: 330μF
  • Rated Voltage: 10V
  • Tolerance: ±20%
  • Polarization: Polarized
  • Diameter: 0.248 inches (6.30mm)
  • Maximum Height: 0.492 inches (12.50mm)
  • Mounting Type: Through Hole
  • Lead Spacing: 0.098 inches (2.50mm)
  • Ripple Current @ 120Hz: 200mA
  • Ripple Current @ 100kHz: 300mA
  • Lifetime @ 105°C: 1000 hours
  • Applications: General
  • Package: Radial Can
