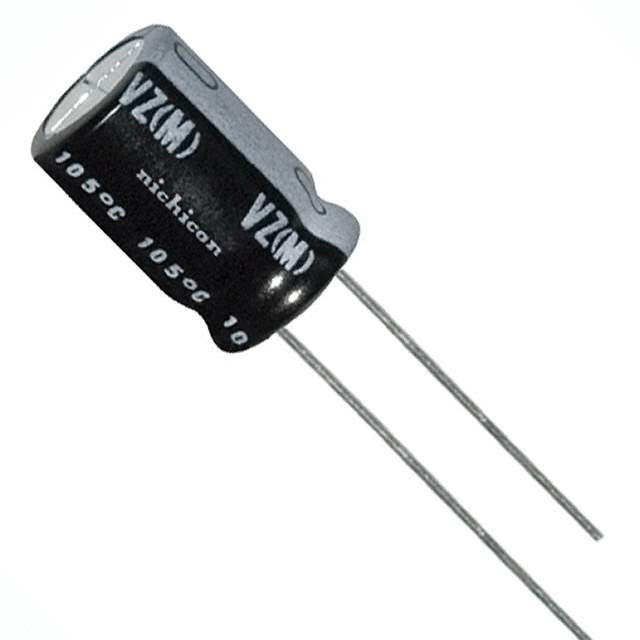

UVZ1H221MPD1TD Real Image
Same model may have multiple batches, images only for reference.

UVZ1H221MPD1TD

Part No UVZ1H221MPD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 50V RADIAL / 220 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVZ
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-13467-1,493-13467-3
Standard Package 500
Win Source Part Number 1103557-UVZ1H221MPD1TD
Ultra Librarian 3D Model Ultra Librarian UVZ1H221MPD1TD CAD Model

Description

The UVZ series aluminum electrolytic capacitors are designed to provide high capacitance and voltage ratings in a small form factor. Nichicon UVZ series with a capacitance of 220 µF and a voltage rating of 50 V.

  • Capacitance: 220 µF
  • Voltage Rating: 50 V
  • ESR: Not specified
  • Mounting Type: Through-hole
  • Package/Case: Radial, can
  • Diameter: 0.394" (10.00mm)
  • Height: 0.551" (14.00mm)
  • Operating Temperature Range: -55°C to 105°C
  • Lifetime at Temperature: 1000 Hrs @ 105°C
  • Capacitance Tolerance: ±20%
