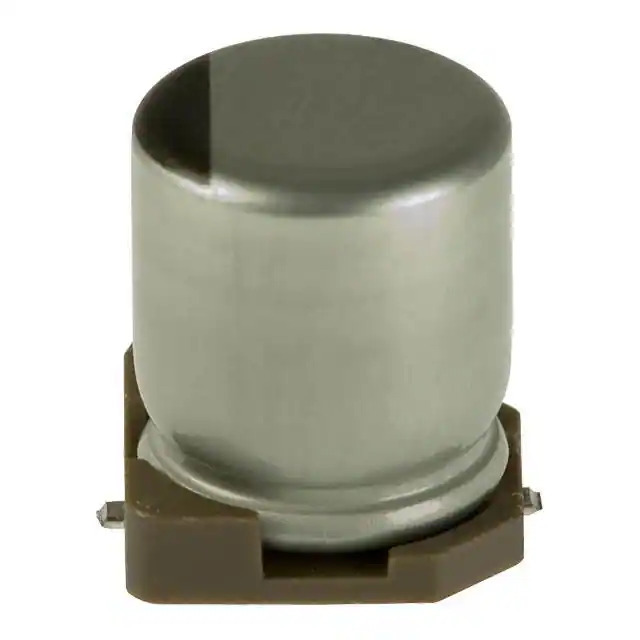

UWT1E101MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UWT1E101MCL1GS

Part No UWT1E101MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 25V SMD / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWT
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 91 mA @ 120 Hz
Ripple Current @ High Frequency 136.5 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360149-UWT1E101MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWT1E101MCL1GS CAD Model

Description

The UWT1E101MCL1GS is a radial, surface mount aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 100 μF
  • Voltage Rating: 25 V
  • Temperature Range: -55°C to 105°C
  • Applications: General Purpose
  • Ripple Current (Low Frequency): 91 mA @ 120 Hz
  • Ripple Current (High Frequency): 136.5 mA @ 10 kHz
  • Series: UWT
  • Polarization: Polarized
  • Tolerance: ±20%
  • Size: 0.248" diameter, 0.303" height
  • Lifetime: 1000 hours @ 105°C
  • Packaging: Tape and Reel
  • Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • REACH: Unaffected
