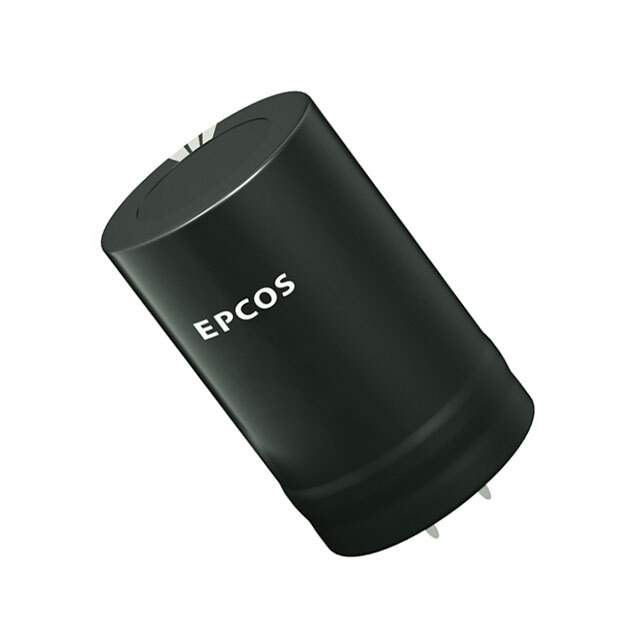

B43540A5567M000 Real Image
Same model may have multiple batches, images only for reference.

B43540A5567M000

Part No B43540A5567M000
Manufacturer EPCOS (TDK)
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 450V SNAP / 560 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 190mOhm @ 100Hz 10000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr EPCOS - TDK Electronics
Series B43540
Package Bulk
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) 190mOhm @ 100Hz
Lifetime @ Temp. 10000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 3.5 A @ 100 Hz
Impedance 280 mOhms
Lead Spacing 0.394" (10.00mm)
Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 2.244" (57.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Names B43540A5567M,B43540A5567M-ND
Standard Package 120
Win Source Part Number 1228335-B43540A5567M000
Ultra Librarian 3D Model Ultra Librarian B43540A5567M000 CAD Model

Description

The B43540A5567M000 is a radial, can-snap-in aluminum electrolytic capacitor from EPCOS - TDK Electronics.

  • Capacitance: 560 µF
  • Tolerance: ±20%
  • Voltage Rating: 450V
  • Ripple Current: 3.5A @ 100Hz
  • ESR: 190mOhm @ 100Hz
  • Package Quantity: 120
  • Lead Spacing: 0.394 inches
  • Temperature Range: -40°C to 85°C
  • Lifetime: 10,000 hours @ 85°C
  • Polarization: Polarized
