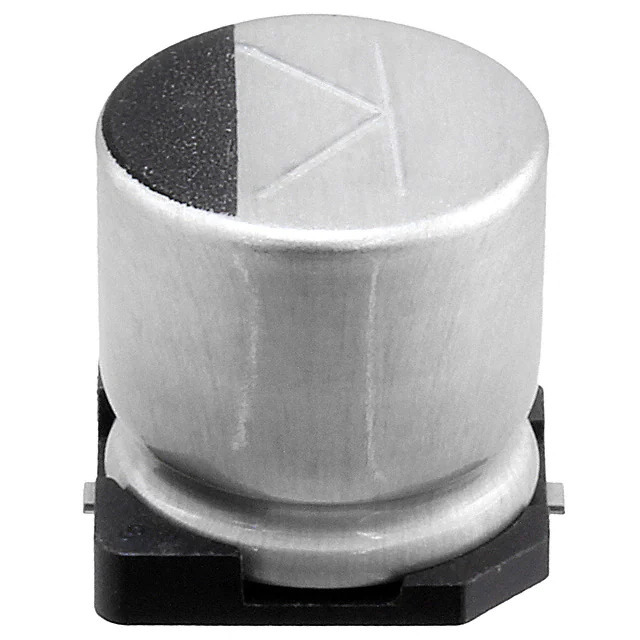

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TLV
Package Tape & Reel
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 510 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 80 mOhms
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360150-35TLV330M10X10.5
Ultra Librarian 3D Model Ultra Librarian 35TLV330M10X10.5 CAD Model

Description

The 1172440 is an aluminum electrolytic capacitor manufactured by Rubycon.

  • Category: Capacitors
  • Application: Automotive
  • Capacitance: 330 µF
  • Tolerance: ±20%
  • Voltage (Max): 35 V
  • Impedance: 80 mOhms
  • Temperature Range: -55°C to 105°C
  • Lifetime: 5000 hours @ 105°C
  • Mounting Type: Surface Mountable
  • Package: Radial, Can - SMD
  • Product Status: Active
