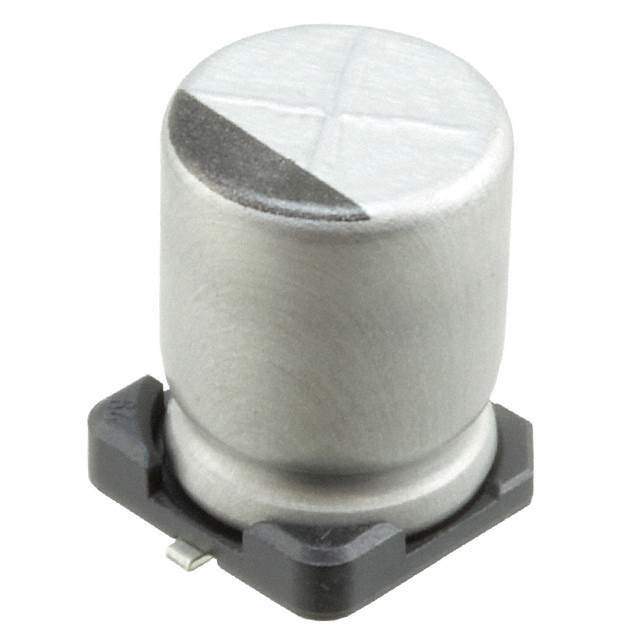

Same model may have multiple batches, images only for reference.

UCD1V221MNL1GS

Name: UCD1V221MNL1GS
Brand: Nichicon
SKU: 803133
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1V221MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 35V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Nichicon
Packaging	Reel
Capacitance	220μF
Tolerance	±20%
Voltage - Rated	35V
Lifetime at Temp.	2000 Hrs at 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	Automotive
Ripple Current at Low Frequency	300mA at 120Hz
Ripple Current at High Frequency	600mA at 100kHz
Impedance	160 mOhms
Dimension	0.315" Dia (8.00mm)
Height - Seated (Maximum)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Style	SMD
Manufacturer Package	Radial, Can - SMD
Manufacturer Pack Quantity	500
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	803133-UCD1V221MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD1V221MNL1GS CAD Model

Description

The Nichicon UCD1V221MNL1GS is a surface mount aluminum electrolytic capacitor.

Capacitance: 220μF
Tolerance: ±20%
Voltage Rating: 35V
Impedance: 160 mOhms
Polarization: Yes
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Supply and Demand Status: balanced
