Microchip Technology's ATTINY814-SSFR

The ATTINY814-SSFR is a high-performance, low-power microcontroller from Microchip Technology, designed to be a versatile and efficient solution for a wide range of embedded applications. As a member of the tinyAVR 1-Series, this MCU is based on the AVR enhanced RISC architecture, which delivers a perfect blend of power efficiency and processing capability.

Key Features

• Advanced RISC Architecture: The ATTINY814-SSFR comes with 8 KB of in-system self-programmable flash memory, 512 Bytes of EEPROM, and 512 Bytes of SRAM. This architecture enables throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
• Peripheral Features: This MCU includes a variety of peripherals such as a 12-channel 10-bit ADC with internal voltage references, a 10-bit DAC for analog output capabilities, and custom programmable logic blocks (CCL - Configurable Custom Logic).
• Communication: For communication, the device supports a USART, SPI, and I2C interface, providing designers with a range of options for serial communication.
• Interface Flexibility: The ATTINY814-SSFR offers a robust set of interface options with its 12 general-purpose I/O lines, allowing for flexible device control and sensor interfacing.
• Power Management: With picoPower technology, the ATTINY814-SSFR ensures ultra-low power consumption in both active and idle modes, which is critical for battery-operated and power-sensitive applications.

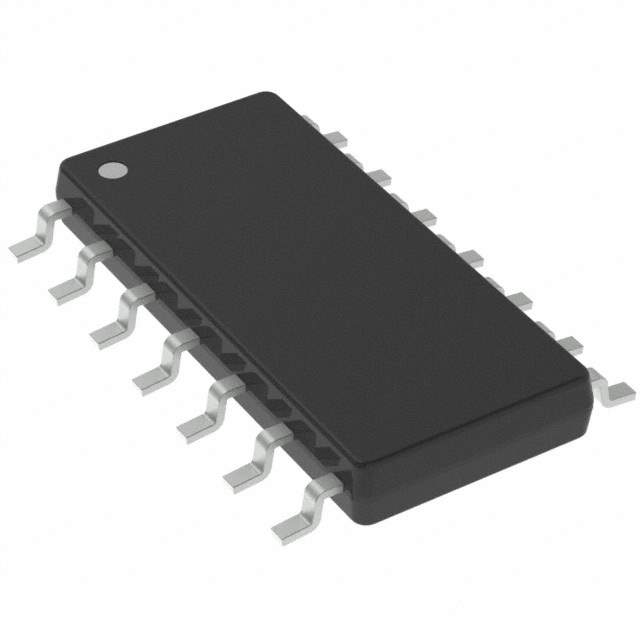

• Package: The device is available in a 14-pin SOIC package, making it suitable for compact designs without compromising on input/output capabilities.
• Operating Conditions: It operates within a voltage range of 1.8V to 5.5V and a temperature range of -40°C to 105°C, ensuring reliable performance across diverse environments.

Applications

The versatility of the ATTINY814-SSFR makes it ideal for applications in areas such as consumer electronics, IoT devices, automation, and sensor systems. Its robust feature set and low power consumption make it particularly well-suited for wearable technology and portable instrumentation.

With its advanced capabilities and flexible interfacing options, the ATTINY814-SSFR from Microchip Technology stands out as a powerful and adaptable microcontroller solution for designers looking to optimize their embedded systems.
