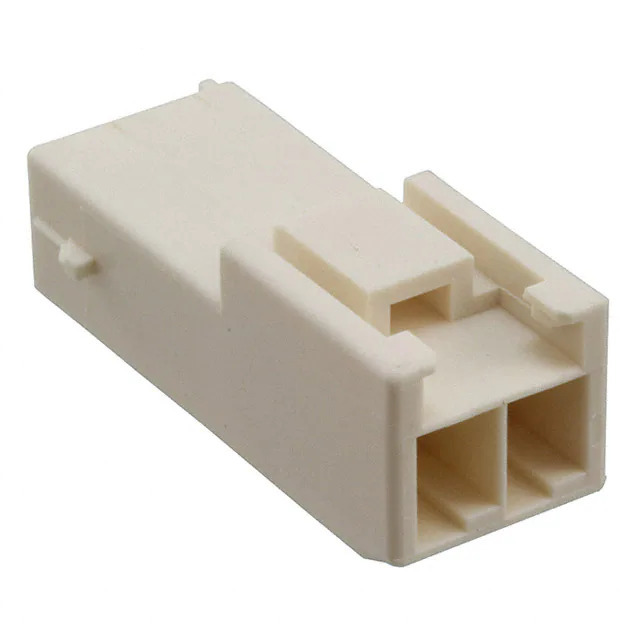

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Power Double Lock
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Tab
Number of Positions 2
Pitch 0.197" (5.00mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Features -
Temperature Range - Operating -30°C ~ 65°C
Note Contacts Not Included
Base Product Number 2005248
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1363465-2005248-1
Ultra Librarian 3D Model Ultra Librarian 2005248-1 CAD Model

Description

The TE Connectivity AMP Connectors Power Double Lock series offers a reliable solution for rectangular connector housings.

  • Mounting Type: Free Hanging (In-Line)
  • Fastening Type: Latch Lock
  • Color: Natural
  • Connector Type: Receptacle
  • Contact Gender: Tab
  • Positions: 2
  • Rows: 1
  • Contact Termination: Crimp
  • Pitch: 0.197" (5.00mm)
  • Operating Temperature: -30°C to 65°C
