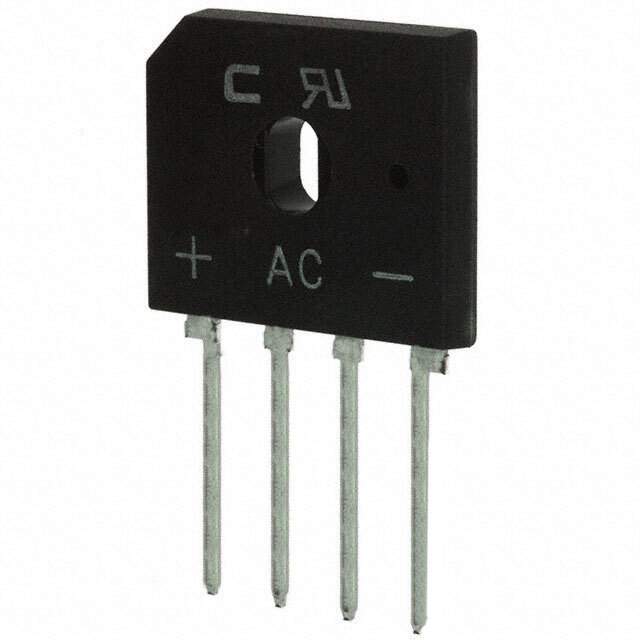

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 11 Weeks
Features Bridge Rectifier Single Phase Standard 600 V Through Hole GBU
Manufacturer Comchip Technology
Package Bulk
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package 4-SIP, GBU
Case / Package GBU
Family Name GBU1506
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 641-1971, GBU1506-G-ND
Quantity per package 20
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872613-GBU1506-G
Ultra Librarian 3D Model Ultra Librarian GBU1506-G CAD Model

Description

The Comchip Technology 872613-GBU1506-G bridge rectifier is a single-phase rectifier that is suitable for use in a variety of applications.

  • Voltage Rating: 600V
  • Package: 4-SIP, GBU
  • Mounting Type: Through-Hole
  • Operating Temperature Range: -55°C to 150°C
  • Device Family: GBU1506
  • Package Quantity: 20 rectifiers
