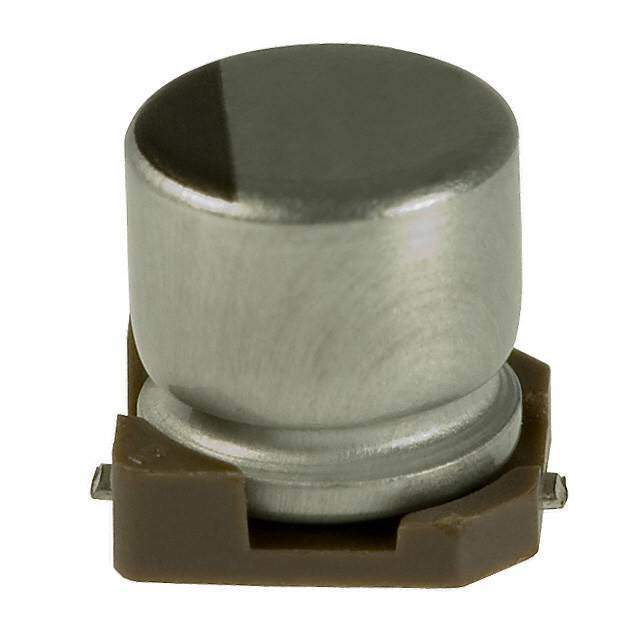

Same model may have multiple batches, images only for reference.

UWT1V100MCL1GB

Name: UWT1V100MCL1GB
Brand: Nichicon
SKU: 798945
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWT1V100MCL1GB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 35V SMD / Cap Aluminum Lytic 10uF 35V 20% (5 X 5.4mm) SMD 25mA 1000h 105°C Automotive T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	UWT
Packaging	Reel package
Capacitance	10μF
Tolerance	±20%
Voltage Rating DC	35V
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature Range	-55°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	25mA @ 120Hz
Ripple Current - High Frequency	37.5mA @ 10kHz
Dimension	0.197" Dia (5.00mm)
Height - Seated (Maximum)	0.213" (5.40mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting	SMD
Package	Radial, Can - SMD
Win Source Part Number	798945-UWT1V100MCL1GB
Popularity	Medium
Supply and Demand Status	Limited
Family Name	UWT
Introduction Date	August 23, 2015
ECCN	EAR99
Country of Origin	China, Japan, Malaysia
Halogen Free	Compliant
Estimated EOL Date	2031
Ultra Librarian 3D Model	Ultra Librarian UWT1V100MCL1GB CAD Model

Description

Nichicon's UWT1V100MCL1GB is a radial, can - SMD capacitor.

Capacitance: 10μF
Voltage Rating: 35V
Tolerance: ±20%
Temperature Range: -55°C to 105°C
Ripple Current: 25mA @ 120Hz
Ripple Current: 37.5mA @ 10kHz
Packaging: Reel
Popularity: Medium
Supply and Demand Status: Limited
