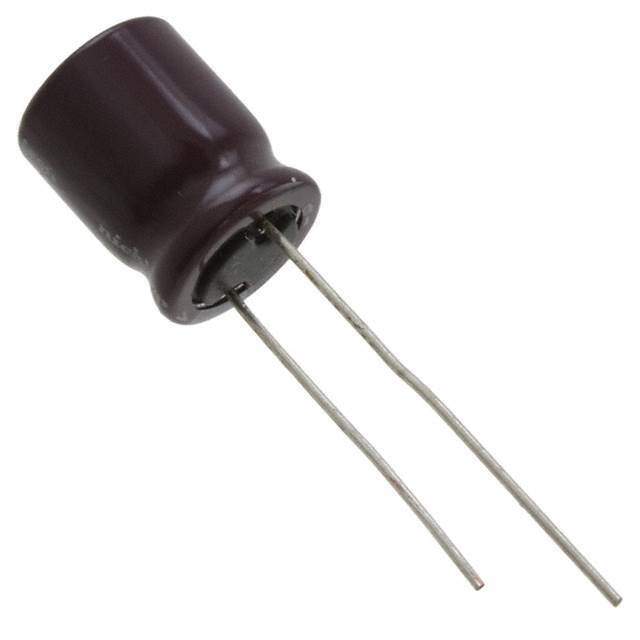

Same model may have multiple batches, images only for reference.

UPJ1A471MPD6TD

Name: UPJ1A471MPD6TD
Brand: Nichicon
SKU: 798904
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPJ1A471MPD6TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 10V RADIAL / Cap Aluminum Lytic 470uF 10V 20% (10 X 12.5mm) Radial 5mm 475mA 5000h 105°C Ammo
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	UPJ
Packaging	Tape in Box
Capacitance	470μF
Tolerance	±20%
Voltage Rating DC	10V
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature Range	-55°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	475mA @ 120Hz
Impedance	210 mOhm
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Maximum)	0.551" (14.00mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	798904-UPJ1A471MPD6TD
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PJ
Introduction Date	September 12, 2003
ECCN	EAR99
Country of Origin	China, Japan, Malaysia
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian UPJ1A471MPD6TD CAD Model

Description

The UPJ1A471MPD6TD is a Nichicon-manufactured electronic component that falls under the category of capacitors.

Supply and Demand Status: Limited
Capacitance: 470 μF
Voltage Rating: 10V
Tolerance: ±20%
Ripple Current: 475 mA @ 120 Hz
Package: Radial, can-shaped
Lead Spacing: 5.00mm
Temperature Range: -55°C to 105°C
Lifespan: 5000 hours @ 105°C
