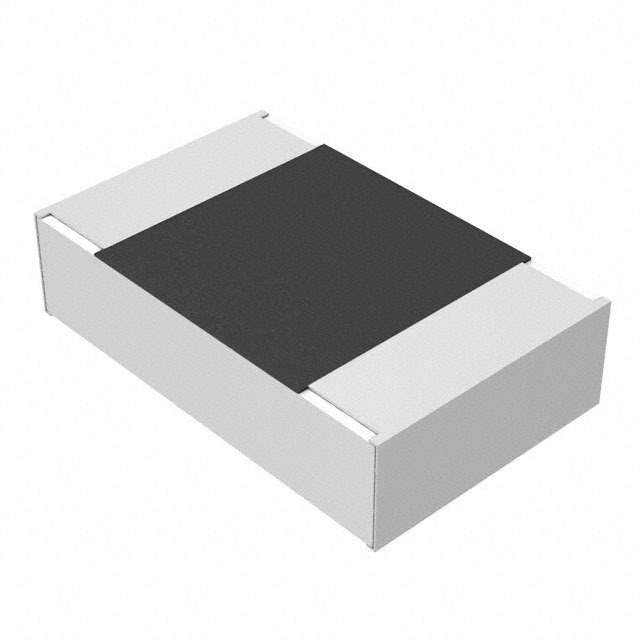

The ERA-S33J152V is a surge-resistant chip resistor manufactured by Panasonic. This specialized resistor is designed to protect electronic circuits from voltage surges, such as those caused by electrostatic discharge (ESD) or lightning strikes. It combines the functionality of a standard chip resistor with enhanced surge withstanding capabilities, making it suitable for applications where overvoltage protection is critical.

Applications:

• Input protection for electronic devices
• Surge protection in power supplies
• ESD protection for communication lines
• Overvoltage protection in automotive electronics
• Lighting surge protection in outdoor equipment

Features:

• Surge-resistant design
• High reliability
• Surface mount technology (SMT)
• Compact size (typically 1206 or 0805, verify based on the datasheet)
• RoHS compliant
• Resistance value: 1.5 kΩ (152 = 15 x 10^2)

Benefits:

• Protects sensitive electronic components from damage due to voltage surges
• Improves the reliability and lifespan of electronic devices
• Reduces the risk of field failures
• Simplifies circuit design by integrating surge protection into a single component
• Environmentally friendly due to RoHS compliance

Additional Details:

The ERA-S33J152V has a resistance value of 1.5 kΩ (kiloohms). The '152' marking indicates the resistance value: 15 x 10^2 ohms. This surge resistor's key characteristic is its ability to withstand high surge voltages and currents without significant change in resistance or damage. Its surge withstanding capability is usually specified in terms of the maximum surge voltage and current it can handle, as well as the number of surge pulses it can withstand. The power rating for the ERA-S33J152V is typically 0.25W or 0.5W, depending on the size and series. The tolerance is usually ±5%, but the datasheet should be consulted for exact specifications. Proper PCB layout and soldering techniques are important for optimal surge protection performance. Care should also be taken to ensure that the surge resistor is properly connected to the circuit ground to effectively shunt surge currents away from sensitive components. It operates from -55°C to +155°C typically. TCR is normally ±100 ppm/°C or ±200 ppm/°C.
