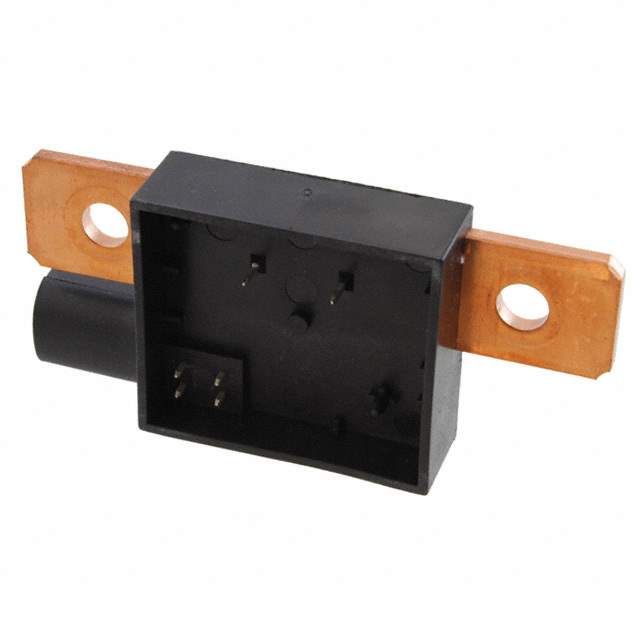

WSBM8518L1000JK Real Image
Same model may have multiple batches, images only for reference.

WSBM8518L1000JK

Part No WSBM8518L1000JK
Manufacturer Vishay
Catalog Specialized Resistors
Description RESISTOR SHUNT 100 UOHM 5% 36W  /  100 µOhms ±5% 36W Shunt, Battery Specialized Resistor Metal Element ±175ppm/°C Shunt Fixture, 60mm Pitch
Datasheet
WSBM8518L1000JK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Specialized Resistors
Mfr Vishay Dale
Series Power Metal Strip®
Package Bulk
Type Shunt, Battery
Composition Metal Element
Resistance 100 µOhms
Tolerance ±5%
Power (Watts) 36W
Temperature Coefficient ±175ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Mounting Type Shunt Fixture, 60mm Pitch
Other Names 541-1906
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1236277-WSBM8518L1000JK
Ultra Librarian 3D Model Ultra Librarian WSBM8518L1000JK CAD Model

Description

This electronic component is a shunt, battery type resistor from the Power Metal Strip series, manufactured by Vishay Dale.

  • Package: Bulk
  • Tolerance: ±5%
  • Temperature Coefficient: ±175ppm/°C
  • Power (Watts): 36W
  • Resistance: 100 μOhms
  • Mounting: Shunt fixture with a 60mm pitch
