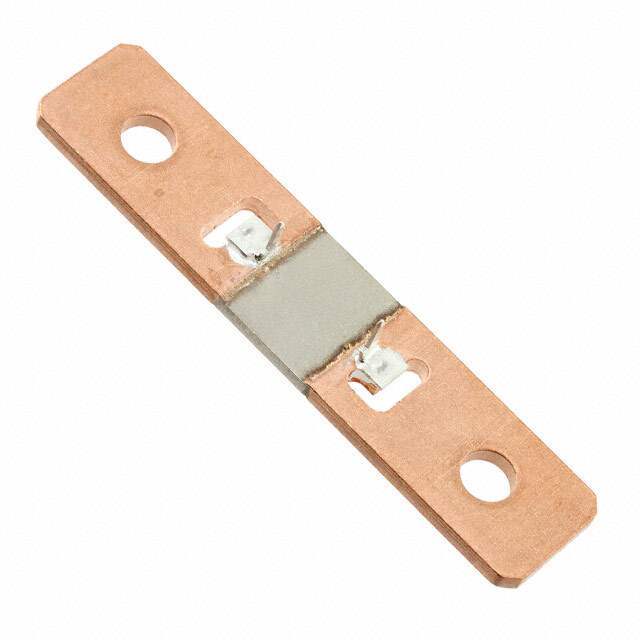

Same model may have multiple batches, images only for reference.

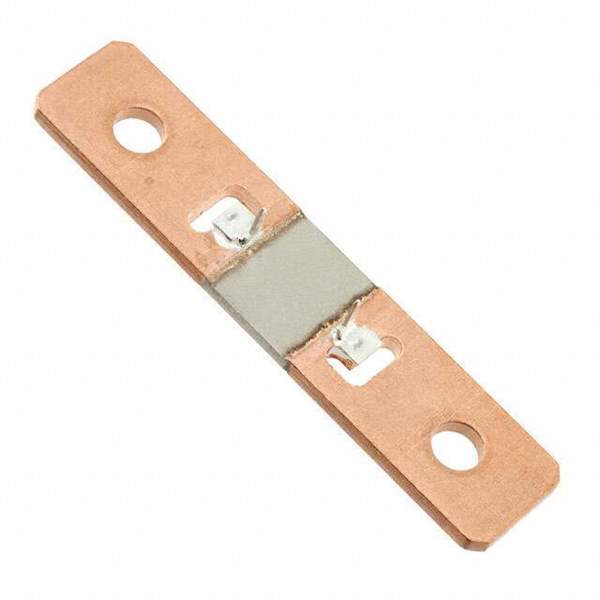

WSBS8518L1000JT35 Vishay Dale
Same model may have multiple batches, images only for reference.

WSBS8518L1000JT35

Part No WSBS8518L1000JT35
Manufacturer Vishay
Catalog Specialized Resistors
Description RESISTOR SHUNT 100 UOHM 5% 36W
Datasheet
WSBS8518L1000JT35 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308162-WSBS8518L1000JT35
Manufacturer Vishay Dale
Category Resistors>Specialized Resistors
Packaging  Tray
Part Status Active
Type Shunt, Battery
Composition Metal Element
Resistance (Ohms) 100 µOhms
Tolerance ±5%
Power (Watts) 36W
Temperature Coefficient ±65ppm/°C
Operating Temperature -65°C ~ 170°C
Ultra Librarian 3D Model Ultra Librarian WSBS8518L1000JT35 CAD Model

Description

FEATURES
FEATURES
• High power to resistor size ratio
• Proprietary processing technique produces extremely low resistance values
• Welded terminal to element construction
• Solid metal nickel-chrome alloy resistive element with unique design for low TCR (down to ± 10 ppm/°C)
• Very low inductance (< 5 nH)
• Low thermal EMF (as low as < 1.25 μV/°C)
