Same model may have multiple batches, images only for reference.

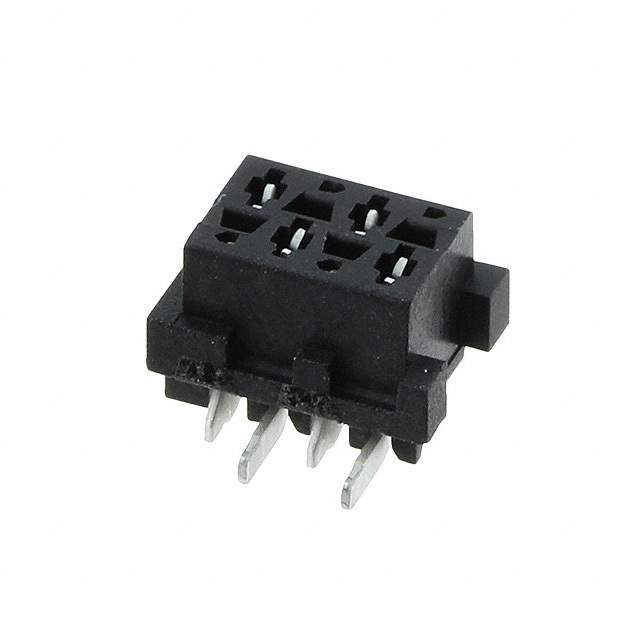

7-2178711-4 Real Image
Same model may have multiple batches, images only for reference.

7-2178711-4

Part No 7-2178711-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN 4P FOB P&P VERT RCPT SMD
Datasheet
7-2178711-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Micro-MaTch
Packaging Reel package
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1μin (3.00μm)
Insulation Color Black
Insulation Height 0.209" (5.30mm)
Operating Temperature Range -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place
Applications General Purpose, Telecommunications
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material Brass
Contact Finish Thickness - Post 118.1μin (3.00μm)
Win Source Part Number 761805-7-2178711-4
Family Name 2178711
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Poland
Estimated EOL Date 2026
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7-2178711-4 CAD Model

Description

The Micro-MaTch series of connectors offered by TE Connectivity AMP Connectors is a receptacle type with forked contact.

  • Series: Micro-MaTch
  • Connector Type: receptacle
  • Contact Type: forked
  • Positions: four
  • Operating Temperature: -40°C ~ 105°C
  • Features: pick and place
  • Applications: general-purpose and telecommunication
  • Mounting Style: SMD
  • Contact Material: brass
  • Insulation Material: polyamide (PA46), Nylon 4/6, Glass Filled
  • Connection Type: board to board or cable
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: tin, 118.1μin (3.00μm)
  • Contact Finish-Post: tin, 118.1μin (3.00μm)
  • Manufacturer: TE Connectivity AMP Connectors
